YQME05N6S61HH
Low capacitance 15pF, 0.1uA leakage, low clamping, <1ns response
- Brand： YQM
- Size/Package： DFN1006-2L
- Parameter： 5V
- Operating Temp： -55 -150℃
- Direction： Bidirectional
- VBR(Min）： 5.6V
- VC@IPP=1A： 10V
- Cj： 15pF
- Applications： Smart Phone and Tablet PC / TV and Set Top Box / Wearable Devices / PDA
- Parameters
- Brand： YQM
- Size/Package： DFN1006-2L
- Parameter： 5V
- Operating Temp： -55 -150℃
- Direction： Bidirectional
- VBR(Min）： 5.6V
- VC@IPP=1A： 10V
- Cj： 15pF
- Applications： Smart Phone and Tablet PC / TV and Set Top Box / Wearable Devices / PDA
YQME05N6S61HH | Discrete Device
Product Introduction

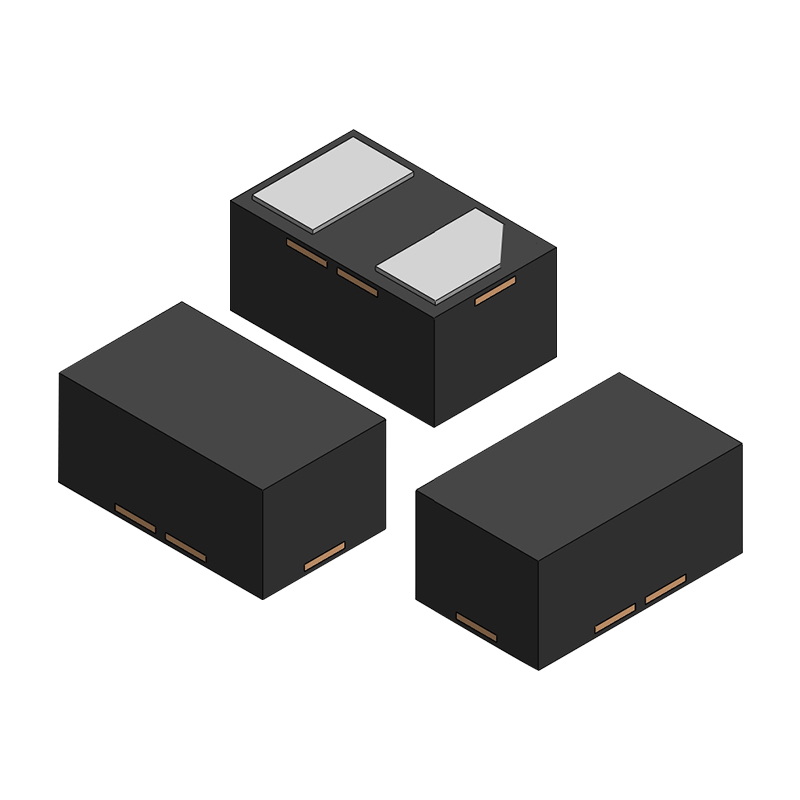

YQME05N6S61HH is a single-channel bidirectional ESD-protection diode housed in the miniature DFN1006-2L surface-mount package with a rated reverse working voltage of 5 V. It can withstand ±25 kV contact and air ESD according to IEC61000-4-2, with a response time of less than 1 ns. Featuring low clamping voltage and nA-range low leakage current, it operates over a temperature range of-55 ℃ to +150 ℃.
Core Advantages
- Working voltage: 5 V;Low capacitance: 15 pF (Typical);
- Low leakage current: 0.1 μA @ VRWM;Low clamping voltage;
- Response time: < 1 ns
Key Features
Alternative Products and Reasons
- Replacement:
- Nexperia: PESD5V0S1BA;
- Replacement Rationale: Pin-to-pin & parameter compatible; cost saving with no PCB modification.
Applications
tablet PCs, wearable devices (smart watches, bands), PDA handheld terminals;
TV-BOX;
Bluetooth/Wi-Fi modules, home-use smart sensors;
portable acquisition terminals
Related Products
FAQ
Q: What applications is this product suitable for?
A: The YQME05N6S61HH is designed for industrial, communications, automotive, and IoT applications. Contact YQM for application-specific recommendations.
Q: Are samples available?
A: Yes, YQM ELECTRONICS provides free samples of YQME05N6S61HH for evaluation. Contact our sales team for quick delivery.
Q: What is the minimum order quantity?
A: MOQ varies by model. YQM offers flexible ordering from prototypes to volume production. Contact us for pricing.
Contact YQM ELECTRONICS for fast samples, competitive pricing, and expert FAE support.
