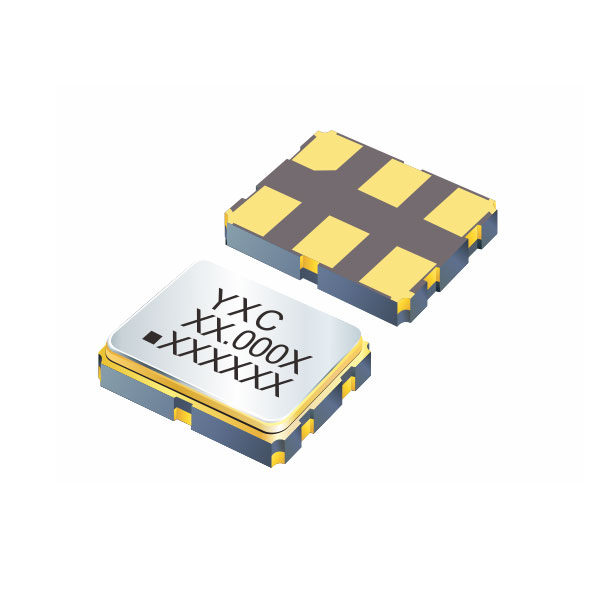

Item / Type	LVPECL	LVDS	Remarks
Output Frequency Range	10MHz to 1500MHz
Supply Voltage	2.5Vdc ± 10% 3.3Vdc ± 10%
Operating Temperature Range	-40 to +85 ℃
Storage Temperature Range	- 55 to + 125 ℃
Frequency Stability	± 50 ppm
Input Resistance	1Mohms Typ
Current	80mA Max	50mA Max	OE=Vcc, LVPECL=(50) Ω or LVDS=(100)Ω
Disable Current	16mA Typ		OE=GND
Output Voltage (LVPECL)	VOH=Vcc-1.03 Min	-	DC characteristics
	VOL=Vcc-1.6 Max	-
Output Voltage (LVDS)	-	VOD=175mV Min.	VOD1, VOD2	DC characteristics
	-	VOD=50mV Min.	dVOD=丨 VOD1-VOD2 丨
	-	VOS=1.25V Typ.	VOS1, VOS2
	-	VOD=50mV Min.	dVOS=丨 VOS1-VOS2丨
Output Load Condition	L_PECL=50Ω	-	Terminated to Vcc-2.0V
	-	L_LVDS=100Ω	Connected between OUT to OUT
Input Voltage	VIH=70% VccMin, VIL=30%Vcc Max		OE terminal
Output Symmetry	45 to 55%
Rise Time/Fall Time	1ns Max.		LVPECL: Between 20% and 80% of (VOH-VOL), LVDS: Between 20% and 80% Differential Output peak to peak voltage
Start-up time	10mS Max		Time at minimum supply voltage to be 0s
Phase Jitter (12KHz to 20MHz)	1.0pS Typ.		200MHz to 800MHz
	2.0pS Typ.		801MHz to 1500MHz
Aging	±3ppm		25℃ First year, Vcc=2.5V, 3.3V

External dimensions

(Unit: mm)
