YSO510TP
- Brand： YXC
- Size/Package： 4P SMD Customized
- Parameter： 10-52MHz
- Supply Voltage： 1.8,2.5,3,3.3V
- Output： CMOS,Clipped Sine Wave
- Freq Tolerance： ±0.28,±0.5,±1.5,±2.5ppm
- Operating Temp： -40℃~+85℃
- Parameters
- Brand： YXC
- Size/Package： 4P SMD Customized
- Parameter： 10-52MHz
- Supply Voltage： 1.8,2.5,3,3.3V
- Output： CMOS,Clipped Sine Wave
- Freq Tolerance： ±0.28,±0.5,±1.5,±2.5ppm
- Operating Temp： -40℃~+85℃
YSO510TP | High-Precision TCXO for Drone Flight Control, GNSS and Image Transmission
Product Introduction

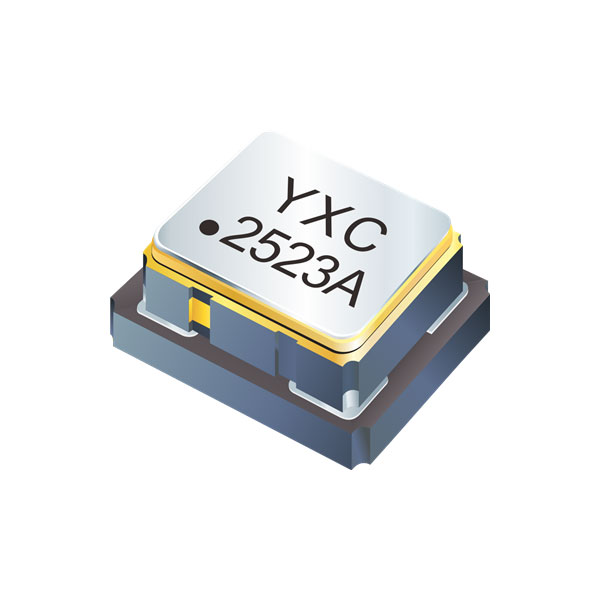

The YXC YSO510TP is a high-precision temperature-compensated crystal oscillator (TCXO) for drone flight control, GNSS/RTK positioning, image transmission and telemetry. It covers 10–52 MHz with 1.8/2.5/3.0/3.3 V supply options, CMOS or clipped-sine output, and a compact 2016 (2.0×1.6 mm) package. Tight ±0.5 ppm stability over -40~+85°C keeps timing stable from cold high-altitude flight to hot ground operation.
Application Pain Points & Solutions
- Pain: Frequency offset in cold altitude or high ground temperature
Solution: ±0.5 ppm temperature compensation over -40~+85°C keeps flight-control timing and GNSS fix accuracy stable. - Pain: Image-transmission stutter, high bit-error rate and positioning jitter
Solution: Low phase noise and a clean clock improve RF-link margin and reduce packet errors. - Pain: Short battery life and tight PCB space
Solution: 1.8 V operation and the 2016 package reduce power and footprint for high-density drone electronics.
Core Advantages
- High stability: ±0.5 ppm over -40~+85°C (ordering option); ±0.28/±1.5/±2.5 ppm options available.
- Low phase noise: Clean reference for GNSS, image transmission and telemetry links.
- Low voltage, small package: 1.8 V supply and 2.0×1.6 mm package for battery-powered, space-constrained designs.
- Flexible output: CMOS or clipped-sine output, 10–52 MHz.
Key Specifications
| Parameter | Value |
|---|---|
| Frequency | 10–52 MHz |
| Stability | ±0.28 / ±0.5 / ±1.5 / ±2.5 ppm |
| Supply Voltage | 1.8 / 2.5 / 3.0 / 3.3 V |
| Output | CMOS / Clipped Sine |
| Operating Temp. | -40~+85°C |
| Package | 2016 / 2520 / 3225 / 5032 / 7050 |
| Aging | ±1.0 ppm/year |
| Compliance | RoHS |
Applications
Stable clock for flight controller and IMU fusion.
Accurate timing for fast fix and reliable positioning.
Low-jitter reference for video and telemetry links.
Stable reference for portable communication devices.
Timing for GNSS modules and navigation boards.
FAQ
Q: Does YSO510TP support 1.8 V and the 2016 package?
A: Yes. 1.8/2.5/3.0/3.3 V and 2016 (2.0×1.6 mm) are available; confirm the exact ordering code for your frequency and stability.
Q: What stability can I order?
A: ±0.28, ±0.5, ±1.5 and ±2.5 ppm options; ±0.5 ppm is a popular choice for drone and GNSS designs.
Q: Is it suitable for -40°C operation?
A: Yes, the series is specified for -40~+85°C; confirm the variant for your temperature and frequency.
Q: Are samples available?
A: Yes. YQM provides samples, datasheets and FAE support for volume programs.
