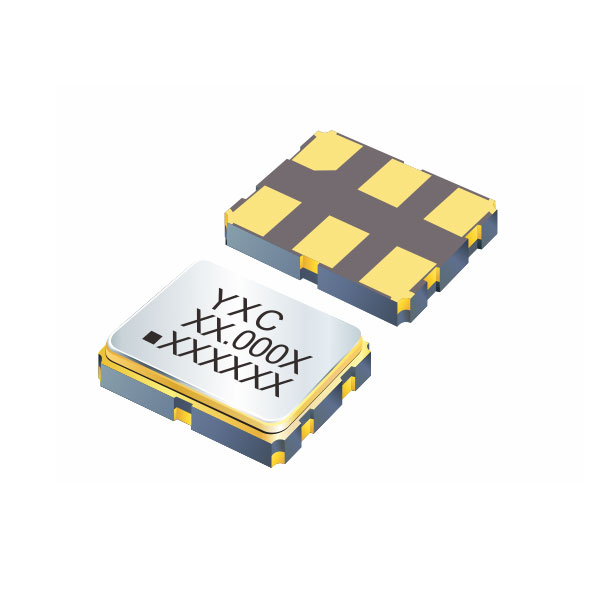

Item / Type	LVPECL	LVDS	Remarks
Output Frequency Range	10MHz to 1500MHz
Supply Voltage	2.5Vdc ± 10% 3.3Vdc ± 10%
Operating Temperature Range	-40 ~ +85 ℃
Storage Temperature Range	-55 ~ + 125 ℃
Frequency Stability	± 50 ppm
Absolute Pull Range	± 50 ppm min
Input Resistance	1Mohms Typ
Current	80mA Max	50mA Max	OE=Vcc, LVPECL=(50) Ω or LVDS=(100)Ω

Disable Current	16mA Typ		OE=GND
Output Voltage (LVPECL)	VOH=Vcc-1.03 Min	-	DC characteristics
	VOL=Vcc-1.6 Max	-
Output Voltage (LVDS)	-	VOD=175mV	VOD1, VOD2	DC characteristics
	-	VOD=50mV Max.	dVOD=丨 VOD1-VOD2 丨
	-	VOS=1.25V	VOS1, VOS2
	-	VOD=50mV Max.	dVOS=丨 VOS1-VOS2丨
Output Load Condition	L_PECL=50Ω	-	Terminated to Vcc-2.0V
	-	L_LVDS=100Ω	Connected between OUT to OUT

Input Voltage	VIH=70% VccMin, VIL=30%Vcc Max		OE terminal
Output Symmetry	45~55%
Rise Time/Fall Time	1ns Max.		LVPECL: Between 20% and 80% of (VOH-VOL), LVDS: Between 20% and 80% Differential Output peak to peak voltage




Start-up time	10mS Max		Time at minimum supply voltage to be 0s

Phase Jitter (12KHz~20MHz)	1.0pS Typ.		200MHz~800MHz
	2.0pS Typ.		801MHz~1500MHz
Aging	±3ppm		25℃ First year, Vcc=2.5V, 3.3V

External dimensions

(Unit: mm)
