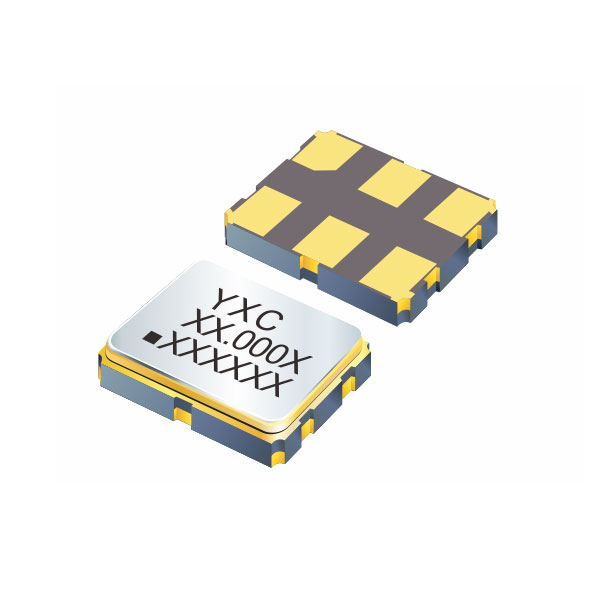

YSV310PR
- Brand： YXC
- Size/Package： 6P SMD Customized
- Parameter： 10-250MHz
- Supply Voltage： 2.5,3.3V
- Output： CMOS
- Freq Tolerance： ±30, 50ppm
- Operating Temp： -40~+85℃
- Applications： 10 GB Ethernet, SONET, SATA, SAS, Fibre Channel
- Parameters
- Brand： YXC
- Size/Package： 6P SMD Customized
- Parameter： 10-250MHz
- Supply Voltage： 2.5,3.3V
- Output： CMOS
- Freq Tolerance： ±30, 50ppm
- Operating Temp： -40~+85℃
- Applications： 10 GB Ethernet, SONET, SATA, SAS, Fibre Channel
Specifications
| Item / Type | YSV310PR |
| Output Frequency Range | 10MHz to 250MHz |
| Dimensions | 3.2 x 2.5 x 1.00 mm 5.0 x 3.2 x 1.20 mm 7.0 x 5.0 x 1.30 mm |
| Supply Voltage | 2.5Vdc ± 10% 3.3Vdc ± 10% |
| Operating Temperature Range | -40 ~ +85 ℃ |
| Storage Temperature Range | - 55 ~ + 125 ℃ |
| Frequency Stability | ± 50 ppm |
| Absolute Pull Range | ± 50 ppm min |
| Input Resistance | 1Mohms Typ |
| Current | 40mA Max |
| Output Load condition CMOS | 15pF |
| Voltage Vol ( Max. ) / Vol ( Min. ) | VOH = 90%Vdd/VOL = 10%Vdd |
| Input Voltage | VIH=70% Vcc Min, VIL=30%Vcc Max |
| Duty Cycle | 45~55% |
| Rise Time/Fall Time | 4ns Max. |
| Start-up time | 10mS Max |
| Phase Jitter (12KHz~20MHz) | 1.0pS Typ. |
| Aging (25℃ First year, Vcc=2.5V,3.3V) | ±3 ppm / year Max. |
External dimensions
(Unit: mm)
