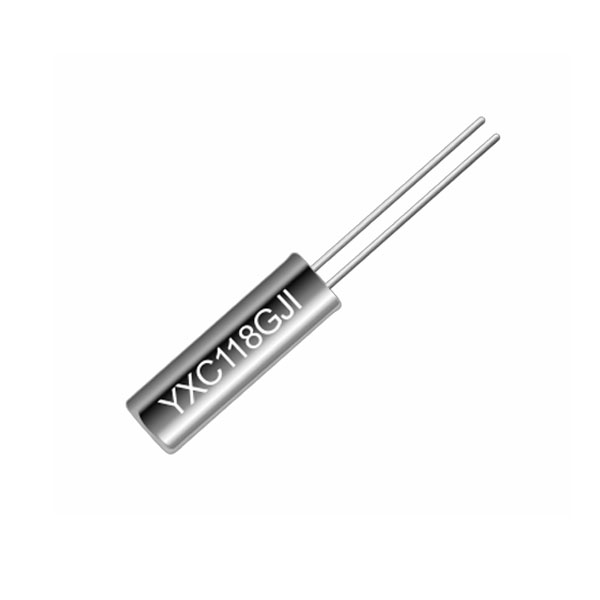

YT-26
- Brand： YXC
- Size/Package： 2.0 x 6.0 mm
- Parameter： 32.768KHz
- Load Cap： 12.5pF
- Freq Tolerance： ±5,±10ppm
- Operating Temp： -40℃~+85℃
- Package： 2P 2060
- Applications： RTC
- Parameters
- Brand： YXC
- Size/Package： 2.0 x 6.0 mm
- Parameter： 32.768KHz
- Load Cap： 12.5pF
- Freq Tolerance： ±5,±10ppm
- Operating Temp： -40℃~+85℃
- Package： 2P 2060
- Applications： RTC
Specifications
| Item / Type | YT-26 |
| Nominal Frequency Range | 32.768KHz |
| Load Capacitance | 12.5pF, or specify |
| Frequency Tolerance (at 25 ℃) | ± 10 ppm, ± 20ppm, or specify |
| Frequency Versus Temperature Characteristics | 0~120ppm, or specify |
| Turnover Temperature | -(0.036±0.01)ppm/℃2 |
| Operating Temperature | - 20 ~ + 70 ℃ , - 40 ~ + 85 ℃, or specify |
| Storage Temperature | -40 ~ +85℃ , or specify |
| Shunt Capacitance | 1.6pF Max |
| Level of Drive | 1 ~ 100 μW ( 1.0 μW Tvp） |
| Frequency Aging (at 25 ℃) | ± 3 ppm / year Max. |
| Insulation Resistance | More Than 500MΩ at DC 100V |
| Equivalent Series Resistance (ESR) | 40KΩ Max |
External dimensions
(Unit: mm)
