As 5G networks transition from large-scale rollout to performance refinement, base station systems impose significantly higher demands on reference clock sources — frequency accuracy, time synchronization stability, and long-term field reliability. Crystal oscillators have become critical components defining the performance boundaries of 5G infrastructure. Leveraging decades of expertise in frequency control devices, YXC presents a complete 5G base station clock solution portfolio covering both TCXO and OCXO families, engineered to meet the most stringent synchronization challenges.

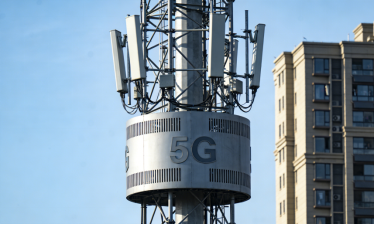

Figure 1: Accurate time synchronization is vital for 5G NR performance and coordination.

1. Core Timing Requirements for 5G Base Stations

• Frequency stability under high bands & high-order modulation: 5G employs mid/high bands and 256QAM schemes, making systems extremely sensitive to short-term stability and phase noise. Frequency deviations directly impact EVM, BER, and cell-edge capacity.
• Time synchronization for TDD & cooperative communications: In 5G TDD networks, inter-base-station timing error must be tightly controlled to avoid UL/DL interference. CoMP, carrier aggregation and multi-site coordination demand sub-microsecond alignment.
• Robustness in harsh environments: Outdoor and remote radio units require oscillators to operate reliably from -40℃ to +85℃ with excellent aging characteristics and consistency over years of service.

2. YXC TCXO Solution: YSO510TP Series for Local Reference & RF Benchmark

The YSO510TP series is a mid/high-performance temperature-compensated crystal oscillator developed by YXC for communications infrastructure. By integrating a high-precision temperature compensation algorithm, it delivers exceptional frequency stability suitable as a local reference clock and RF reference source in 5G base stations.

Figure 2: YSO510TP series TCXO (2016~7050封裝) – high stability, low phase noise.

• Frequency tolerance at +25°C: ±1.5 ppm
• Temperature stability: ±0.05 ppm (-40℃ ~ +85℃) – exceptional for TCXO class
• Operating temperature range: -40℃ ~ +85℃
• Phase noise: Optimized for 5G fronthaul/backhaul requirements
• Start-up characteristics: Fast stabilization
• Package dimensions: 2016, 2520, 3225, 5032, 7050

Typical 5G applications: Baseband units (BBU), remote radio units (RRU / AAU), small cells, and clock distribution / auxiliary synchronization modules.

3. YXC OCXO Solution: Ultra-High Precision for PLL & Holdover

For the most demanding synchronization tasks, the YXC YOV2525DP series Oven Controlled Crystal Oscillator (OCXO) delivers ppb-level temperature stability, ultra-low phase noise, and exceptional holdover performance. It is the ideal choice for primary reference clocks (PRC) and GNSS disciplined timing modules.

Figure 3: YOV2525DP OCXO – ppb stability, low g-sensitivity, ideal for network sync.

• Frequency range: 10 MHz ~ 100 MHz
• Frequency temperature stability: ±0.2 ppb (-40℃ ~ +85℃) – ultimate precision
• Phase noise floor: -155 dBc/Hz @ 1 kHz (typical)
• Operating temperature range: -40℃ ~ +85℃
• Supply voltages: 3.3V, 5.0V, 12.0V
• Package: 25.4 × 25.4 × 12.7 mm (through-hole, SMD compatible)

Key applications: Primary reference clock (PRC), GNSS disciplined oscillator (disciplined clock), synchronization & time holdover units, and core network timing systems.

4. Layered Collaborative Architecture: TCXO + OCXO Synergy in 5G Systems

Modern 5G base stations often adopt a hierarchical clocking architecture that leverages both TCXO and OCXO devices, balancing performance and system cost.

YXC’s solution advantages: complete product portfolio covering TCXO and OCXO for 5G, stability and noise characteristics optimized for communications, mature process consistency for large-scale deployment, and support for custom frequency points, package sizes, and performance grades.

5. Conclusion: Empowering 5G Rollout with Trusted Timing Solutions

As a dedicated player in the frequency control industry, YXC continues to provide high-precision, highly reliable timing components for telecommunication infrastructure. From macro base stations to small cells, the combination of YSO510TP TCXO and YOV2525DP OCXO families enables network equipment manufacturers to achieve stringent 3GPP synchronization targets, reduce bit errors, and ensure seamless end-user experience.

For detailed datasheets, application notes, or sampling requests, our engineering team is ready to assist you in selecting the optimal clock solution for your 5G design.
