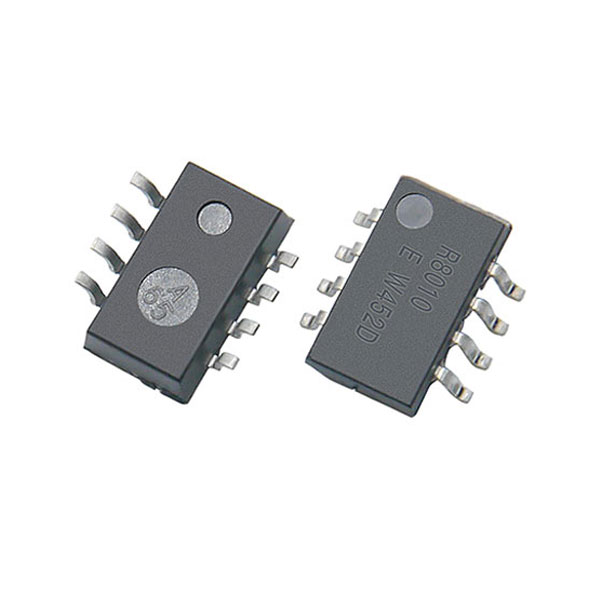

RX8010SJ
內寘32.768KHZ低功耗0.16µA I²C-Bus介面的即時時鐘模塊含計时器/警報器功能
- 品牌： EPSON
- 尺寸/封裝： 7.0 x 6.0 x 2.6 mm
- 參數： ±5ppm
- 供應電壓： 1.6-5.5V
- 接口： I2C
- 頻率： 32.768KHz
- 工作溫度： -40~+85℃
- Package： SOP-8
- 產品應用： 智慧門鎖/平板電腦/檢測儀/安防設備/麥克風/充電樁
- Parameters
- 品牌： EPSON
- 尺寸/封裝： 7.0 x 6.0 x 2.6 mm
- 參數： ±5ppm
- 供應電壓： 1.6-5.5V
- 接口： I2C
- 頻率： 32.768KHz
- 工作溫度： -40~+85℃
- Package： SOP-8
- 產品應用： 智慧門鎖/平板電腦/檢測儀/安防設備/麥克風/充電樁

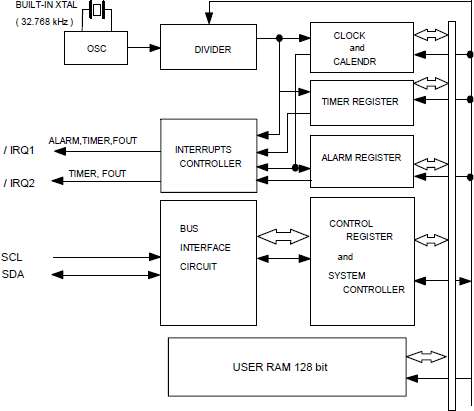

Block diagram
Overview
- Interface Type
- I2C-Bus Interface.(Hi-speed bus specifications 400kHz)
- Frequency output function
- It may select a CMOS or open drain output
- Output frequency can be selected as 32.768kHz, 1024Hz, 1Hz.
- Timer function
- Timer function can be set up between 1/4096 second and 65535 hours.
- Timing period are 1hour, 1min, 64Hz, 4096Hz.
- It is recorded automatic to TF-bit at the time of event occurrence,and possible to output with /IRQ1 or /IRQ2 pin.
- Alarm function
- Alarm function can be set to day of week,day, hour, and minute.
- It is recorded automatic to AF-bit at the time of event occurrence,and possible to output with /IRQ1 pin.
- Built-in RAM
- 128 bit (8 bit x 16 word)
Specifications *Refer to application manual for details.
Recommend Operating Conditions
| Item | Symbol | Condition | Min. | Typ. | Max. | Unit |
|---|---|---|---|---|---|---|
| Power voltage | VDD | - | 1.6 | 3.0 | 5.5 | V |
| Clock voltage | VCLK | - | VLOW | 3.0 | 5.5 | V |
| Operating temperature | TOPR | - | -40 | +25 | +85 | °C |
Frequency characteristics
| Item | Symbol | Condition | Rating | Unit |
|---|---|---|---|---|
| Frequency tolerance | Δ f/f | Ta=+25°C VDD=3.0V | 5±23 * | ×10-6 |
| Oscillation Start-up time | tSTA | Ta=+25°C VDD=1.6V~5.5V | 1Max | s |
| Ta=-40°C~+85°C VDD=1.6V~5.5V | 3Max | s |
*Equivalent to ±1 minute of monthly deviation
Current consumption characteristics
Ta=-40°C to +85°C
| Item | Symbol | Conditions | Min. | Typ. | Max. | Unit | |
|---|---|---|---|---|---|---|---|
| Current Consumption | lBK | Input pins are"L" fCLK=0Hz /IRQ1.2=OFF, TSEL2="1" | VDD=5V | - | - | 350 | nA |
| VDD=3V | - | 160 | 320 | ||||
| l32k | fCLK=0Hz /IRQ1:32.768kHzON, TSEL2="1" | VDD=5V | - | 5.5 | 7.0 | µA | |
| VDD=3V | - | 3.0 | 4.0 | ||||
Pin function
| Signal Name | Input/ Output | Function |
|---|---|---|
| SCL | Input | This is a shift clock input pin for serial data transmission. |
| SDA | Bi-directional | This is the data input/output pin for serial data transfer. |
| IRQ1 | Output | This pin outputs interrupt signals ("L" level) for alarm, timer, time update, and 32.768kHz. This is an N-ch open-drain output. |
| /IRQ2 | Output | This pin outputs interrupt signals ("L" level) for timer and FOUT. This is a C-MOS output. |
| VDD | Supply | This is a power-supply pin. |
| GND | Supply | This pin is connected to a ground. |
Terminal connection / External dimensions
(Unit: mm)
The metal case inside of the molding compound may be exposed on the top or bottom of this product.
This purely cosmetic and does not have any effect on quality, reliability or electrical specs.
Footprint
(Unit: mm)
To maintain stable operation, provide a 0.1uF by-pass capacitor
at a location as near as possible to the power source terminal of the crystal product (between Vcc - GND).
