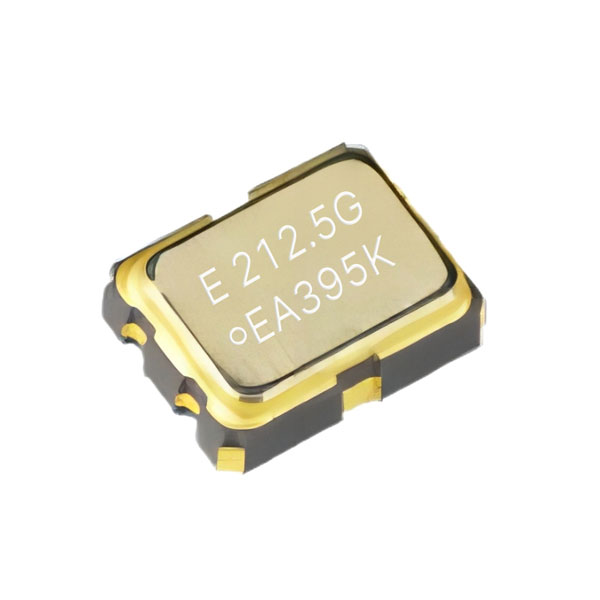

SG3225VEN
- 品牌： EPSON
- 尺寸/封裝： 3.2 x 2.5 x 1.0 mm
- 參數： 25-500MHz
- 電壓： 2.5V,3.3V
- 輸出方式： LVDS
- 頻率偏差： ±25,±50,±100ppm
- 工作溫度： -40℃~+105℃
- 封裝： 6P 3225
- Parameters
- 品牌： EPSON
- 尺寸/封裝： 3.2 x 2.5 x 1.0 mm
- 參數： 25-500MHz
- 電壓： 2.5V,3.3V
- 輸出方式： LVDS
- 頻率偏差： ±25,±50,±100ppm
- 工作溫度： -40℃~+105℃
- 封裝： 6P 3225

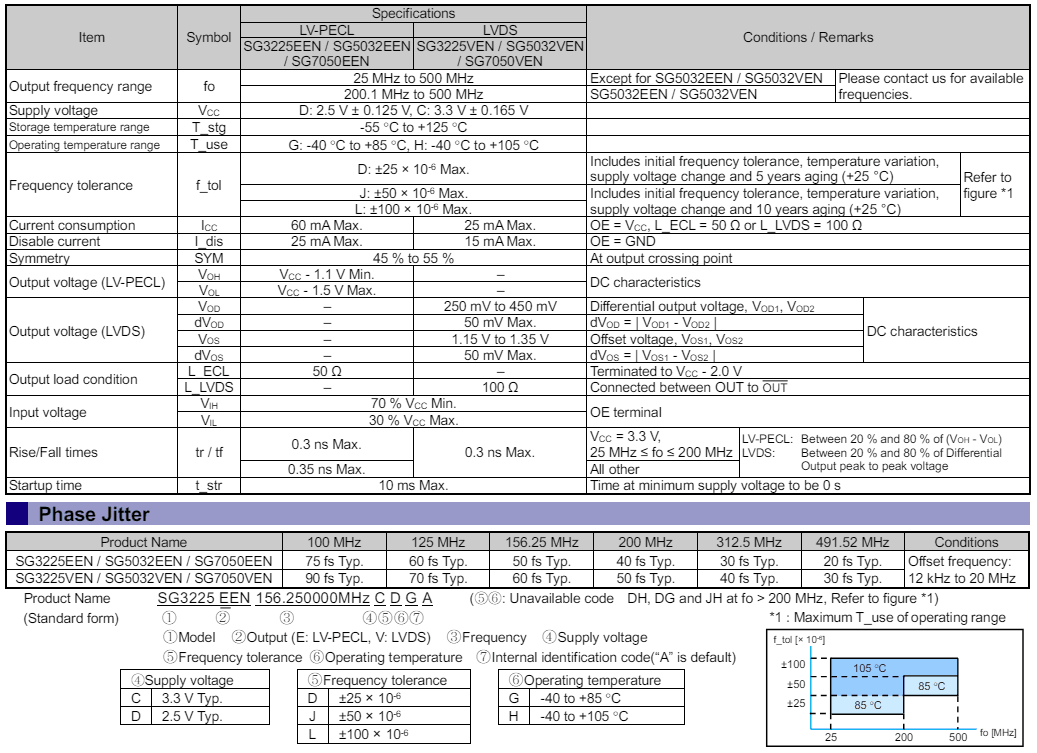

Specifications

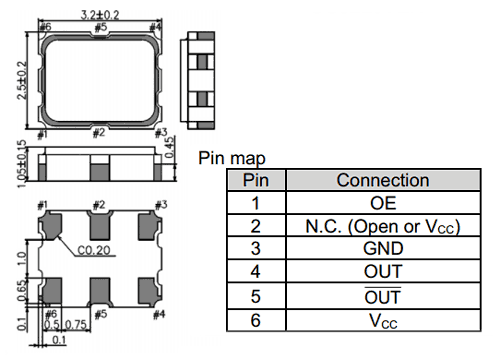

External dimensions
(Unit: mm)
Note:
OE pin = "HIGH" or "Open" : Specified frequency output.
OE pin = "LOW" : Output is high impedance.

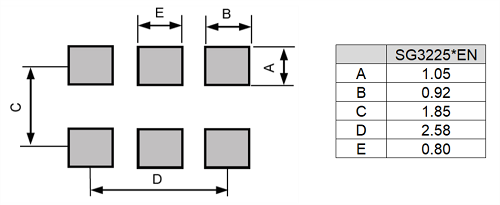

Footprint
(Unit: mm)
In order to achieve optimum jitter performance,
it is recommended that the capacitor (0.1 µF + 10 µF)
between Vcc and GND pin should be placed as close
to the Vcc pin as possible.
