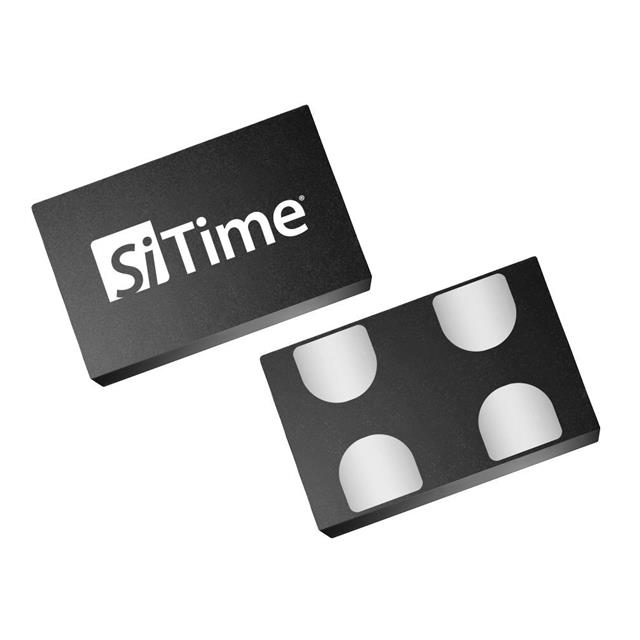

SIT9025

The SiT9025 is an industry's first AEC-Q100-compliant, automotive-grade spread spectrum oscillator. This device solves EMI problems by offering two techniques for emissions compliance: spread spectrum clocking and rise/fall time adjustment of the clock signal. The SiT9025 is supported by SiTime's Time Machine II programmer that allows designers to instantly program spread modulation and/or drive strength to quickly reduce emissions levels. What’s more, the SiT9025 comes in three industry-standard packages to replace quartz products without any board design changes. This combination accelerates time to revenue by ensuring emissions compliance with minimum engineering effort.

Specifications

Features

Industry's first AEC-Q100- compliant, resonator-integrated spread spectrum oscillator

• Up to 30 dB electromagnetic interference (EMI) reduction

• Up to 134 times better electromagnetic susceptibility (EMS) than an external resonator plus an SSIC solution

• Solves EMI problem and improves reliability in noisy environments


Flexible EMI reduction options

• Wide spread range: center spread up to ±2.0%, down spread down to -4.0%

• Configurable rise/fall time: 8 options

• Configurable spread profile: triangular, Hershey kiss, or random


3 industry-standard packages

• 100% drop-in replacement of quartz XO

• Enables EMI reduction without board redesign, metal housing, or other expensive EMI reduction method


World's best cycle-to-cycle jitter: 8.5 ps

• Minimize impact to system timing budget


70 g vibration and 10,000 g shock

• Best robustness and reliability in harsh conditions


Extensive programmability

• Any frequency from 1 to 150 MHz with 6 decimal-place accuracy

• Supply voltage of 1.8 V; 2.5 to 3.3 V

• Frequency stability from ±20 ppm to ±50 ppm
