YSX321SL
- 品牌： YXC
- 尺寸/封裝： 3.2 x 2.5 x 0.7 mm
- 參數： 8-64MHz
- 負載電容： 10,20pF
- 頻率偏差： ±10,±20ppm
- 工作溫度： -40~+85℃
- 封裝： 4P 3225
- 產品應用： Smart Wearable, IOT Communication
- Parameters
- 品牌： YXC
- 尺寸/封裝： 3.2 x 2.5 x 0.7 mm
- 參數： 8-64MHz
- 負載電容： 10,20pF
- 頻率偏差： ±10,±20ppm
- 工作溫度： -40~+85℃
- 封裝： 4P 3225
- 產品應用： Smart Wearable, IOT Communication
Specifications
| Item / Type | YSX321SL |
| Nominal Frequency Range | 8 ~ 64 MHz |
| Vibration Mode | AT Fundamental |
| Load Capacitance | 12pF, 20pF, or specify |
| Frequency Tolerance (at 25 ℃) | ±10 ppm,± 20 ppm, or specify |
| Frequency Versus Temperature Characteristics | ± 20 ppm, or specify |
| Operating Temperature | - 20 ~ + 70 ℃ , - 40 ~ + 85 ℃, or specify |
| Storage Temperature | -40 ~ +85 ℃, or specify |
| Shunt Capacitance | 7 pF Max. |
| Level of Drive | 1 ~ 100 μW (100μW typical) |
| Frequency Aging (at 25 ℃) | ± 3 ppm / year Max. |
| Insulation Resistance | More Than 500MΩ at DC 100V |

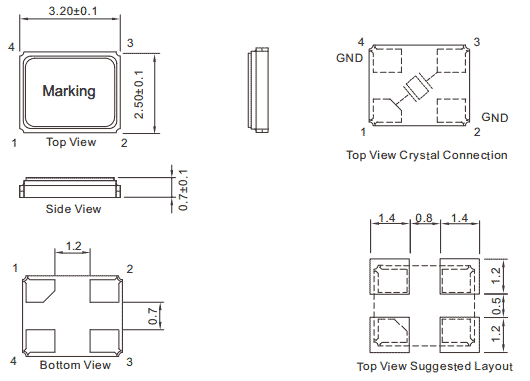

External dimensions
(Unit: mm)
