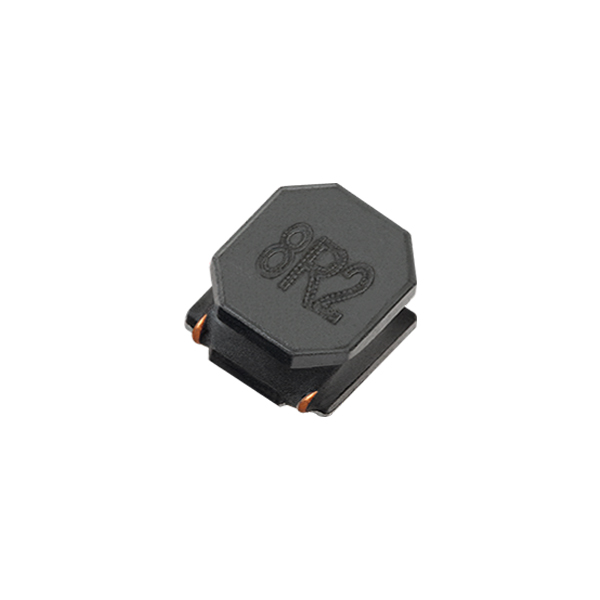

AMWPH6045S

Product Introduction

Sunlord AMWPH6045S is the metric 6045 automotive power inductor of the AEC-Q200 AMWPH series. Ferrite core plus precision winding with magnetic-glue full shielding and closed magnetic circuit delivers the widest inductance coverage of the family (0.55–120μH) with excellent EMI performance for LED lighting, BMS, OBC, DC-DC and motor-drive stages.

Core Advantages

• Widest inductance coverage: 0.55μH to 120μH in the 6045 platform — one footprint for filter chokes and power stages.
• Excellent EMI performance: closed magnetic circuit plus magnetic glue keeps leakage flux minimal.
• Ultra-low DCR: from 7mΩ typical with Isat up to 15.5A for high-power automotive rails.
• AEC-Q200 qualified: automotive-grade reliability, halogen-free and RoHS compliant.
• Proven cross reference: direct alternative to Cyntec, Murata and Sumida large-size AEC-Q200 power inductors.

Key Specifications

Cross Reference & Replacement

Cross-reference alternatives: Cyntec (same-size shielded wire-wound, global mainstream), Murata (automotive power inductors, stable global supply) and Sumida (large AEC-Q200 inductors for motor drives). AMWPH6045S is pad-compatible with all three.

Applications

FAQ

Q: What inductance range does AMWPH6045S cover?

A: 0.55μH to 120μH at ±20% tolerance — the widest in the AMWPH series, suitable for both power stages and filter chokes.

Q: Is AMWPH6045S a drop-in for Sumida/Cyntec 6045 parts?

A: Yes — metric 6045 pads, comparable DCR/Isat and the same closed-magnetic-circuit shielding with AEC-Q200.
