AS1A252010
High performance and high strength ferrite materials, high current and high reliability
- Brand： Sunlord
- Size/Package： 2.5×2.0×1.0mm
- Parameter： 0.22-22μH
- Rated Current： 0.45-2.65A
- Package： SMD
- Operating Temp： -55℃~+150℃
- Applications： ADAS/Infotainment system/LED Lighting/Airbag/Intemet of vehicle
- Parameters
- Brand： Sunlord
- Size/Package： 2.5×2.0×1.0mm
- Parameter： 0.22-22μH
- Rated Current： 0.45-2.65A
- Package： SMD
- Operating Temp： -55℃~+150℃
- Applications： ADAS/Infotainment system/LED Lighting/Airbag/Intemet of vehicle
Automotive Power Inductors | AS1A252010
Product Introduction

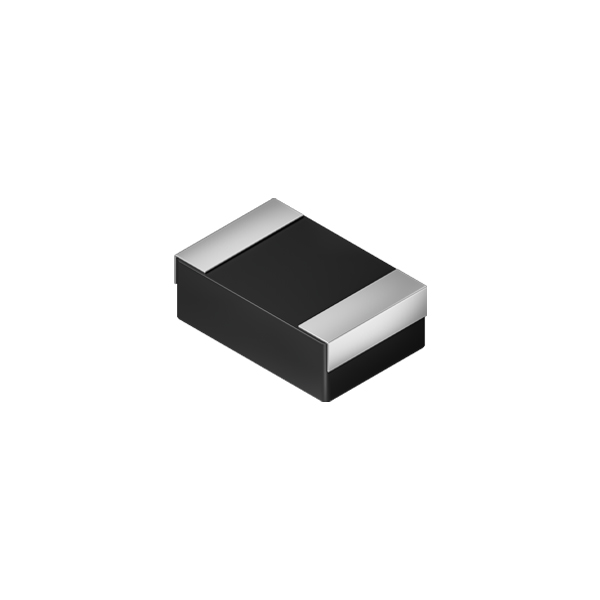

Sunlord AS1A252010 is the high-power-density 2010-size member of the 2025 AS1A automotive power inductor platform. Magnetic shielding plus closed magnetic circuit and AEC-Q200 qualification make it a reliable choice for LED lighting, cockpit displays and ADAS sensor rails from -55°C to +150°C.
Core Advantages
- High power density: 2.5×2.0×1.0mm delivers 0.22–22μH with Isat up to 4A — top of the 2010 class.
- Heat-resistant +150°C: 2025 AS1A platform for high-temperature automotive environments.
- Closed magnetic circuit: magnetic shielding reduces leakage flux around ADAS and RF modules.
- AEC-Q200 qualified: halogen-free, RoHS compliant, automotive-grade reliability.
- Flexible sourcing: cross to TDK, KYOCERA AVX and TAI-TECH with compatible pads.
Key Specifications
| Parameter | Value |
|---|---|
| Type | Power Circuits (Automotive) |
| Package Size | Metric 2010 |
| Operating Temperature | -55°C–+150°C |
| Environmental Compliance | Halogen-free, RoHS compliant |
| Inductance | 0.22μH–22μH |
| Tolerance | ±20% |
| DC Resistance (DCR) | 0.022 Ω–1.360 Ω (typ.) |
| Saturation Current (Isat) | 0.5A–4 A (typ.) |
| RMS Current (Irms) | 0.5A–3.2A (typ.) |
Cross Reference & Replacement
Cross-reference alternatives: TDK (same-size AEC-Q200 shielded wire-wound), KYOCERA AVX (high-end automotive power inductors) and TAI-TECH (Taiwan supply chain with competitive cost). AS1A252010 matches their pads and key parameters.
Applications
LED headlight drivers, ambient lighting, DRL
infotainment, instrument cluster, displays
ADAS modules, sensor supply units
FAQ
Q: What is the package size of AS1A252010?
A: 2.5×2.0×1.0mm (metric 2010) — a slim, high-density footprint for automotive modules.
Q: Is AS1A252010 AEC-Q200 qualified?
A: Yes, with halogen-free materials and RoHS compliance for global automotive programs.
