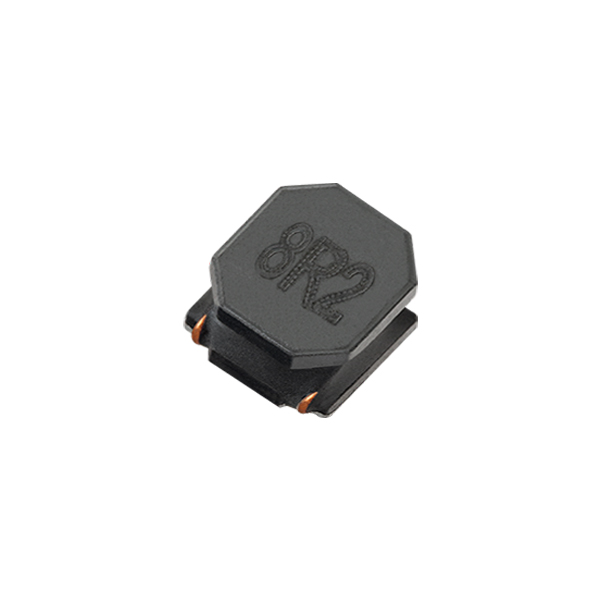

AS1A3010
High performance and high strength ferrite materials, high current and high reliability
- Brand： Sunlord
- Size/Package： 3.0×3.0×1.0mm
- Parameter： 0.47-47μH
- Rated Current： 0.35-2.54A
- Package： SMD
- Operating Temp： -55℃~+150℃
- Applications： ADAS/Infotainment system/LED Lighting/Airbag/Intemet of vehicle
- Parameters
- Brand： Sunlord
- Size/Package： 3.0×3.0×1.0mm
- Parameter： 0.47-47μH
- Rated Current： 0.35-2.54A
- Package： SMD
- Operating Temp： -55℃~+150℃
- Applications： ADAS/Infotainment system/LED Lighting/Airbag/Intemet of vehicle
Automotive Power Inductors | AS1A3010
Product Introduction
Sunlord AS1A3010 is the ultra-slim 3010 member of the 2025 AS1A automotive power inductor family. Magnetic shielding plus a closed magnetic circuit with AEC-Q200 qualification suits LED ambient lighting, cockpit rails and T-BOX/V2X modules from -55°C to +150°C.
Core Advantages
- Ultra-slim 1.0mm height: 3010 metric size fits height-constrained automotive modules.
- 0.47–47μH coverage: broad inductance range for lighting and communication rails.
- Heat-resistant +150°C: 2025 AS1A platform built for high-temperature zones.
- Magnetic shielding: closed magnetic circuit keeps leakage flux away from RF modules.
- AEC-Q200 qualified: halogen-free, RoHS compliant for global programs.
Key Specifications
| Parameter | Value |
|---|---|
| Type | Power Circuits (Automotive) |
| Package Size | Metric 3010 |
| Operating Temperature | -55°C–+150°C |
| Environmental Compliance | Halogen-free, RoHS compliant |
| Inductance | 0.47μH–47μH |
| Tolerance | ±20% |
| DC Resistance (DCR) | 0.037 Ω–1.5 Ω (typ.) |
| Saturation Current (Isat) | 0.3A–3.2 A (typ.) |
| RMS Current (Irms) | 0.4A–2.9A (typ.) |
Cross Reference & Replacement
Cross-reference alternatives: Cyntec (same-size shielded wire-wound), ROHM (AEC-Q200 shielded inductors) and Microgate (short lead-time alternative). AS1A3010 matches their pads and core electricals.
Applications
LED ambient lighting, DRL power
instrument cluster power, infotainment
T-BOX modules, V2X units, gateways
FAQ
Q: How thin is AS1A3010?
A: 1.0mm max height in the 3.0×3.0mm metric 3010 footprint — ideal for ultra-slim automotive modules.
Q: Does AS1A3010 support +150°C operation?
A: Yes — the AS1A series is rated -55°C to +150°C including self-temperature rise.
