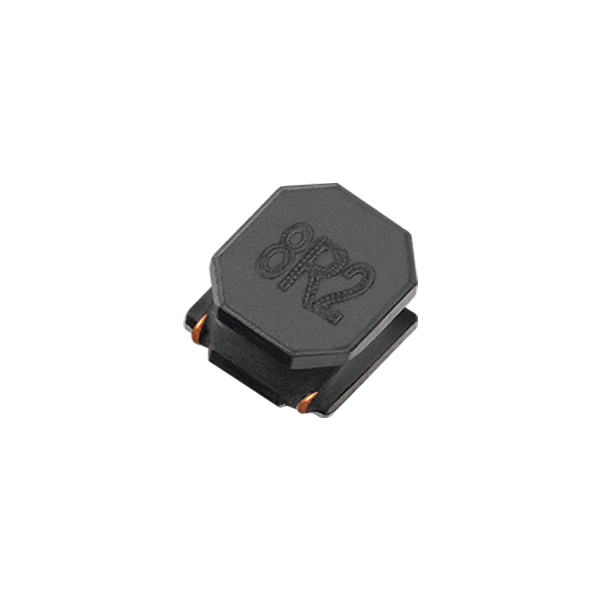

AS1A4010
High performance and high strength ferrite materials, high current and high reliability
- Brand： Sunlord
- Size/Package： 4.0×4.0×1.0mm
- Parameter： 1.0-22μH
- Rated Current： 0.5-1.9A
- Package： SMD
- Operating Temp： -55℃~+150℃
- Applications： ADAS/Infotainment system/LED Lighting/Airbag/Intemet of vehicle
- Parameters
- Brand： Sunlord
- Size/Package： 4.0×4.0×1.0mm
- Parameter： 1.0-22μH
- Rated Current： 0.5-1.9A
- Package： SMD
- Operating Temp： -55℃~+150℃
- Applications： ADAS/Infotainment system/LED Lighting/Airbag/Intemet of vehicle
Automotive Power Inductors | AS1A4010
Product Introduction
Sunlord AS1A4010 is the ultra-slim 4010 member of the 2025 AS1A automotive power inductor family. With a 1.0mm profile, magnetic shielding and AEC-Q200 qualification it powers LED ambient lighting, cockpit rails and ADAS modules from -55°C to +150°C.
Core Advantages
- Ultra-slim 1.0mm profile: 4.0×4.0mm footprint with minimal height for flat automotive modules.
- 1–22μH coverage: standard filter values for lighting and display rails.
- Heat-resistant +150°C: 2025 AS1A platform for high-temperature zones.
- Magnetic shielding: closed magnetic circuit reduces noise coupling.
- AEC-Q200 qualified: halogen-free, RoHS compliant.
Key Specifications
| Parameter | Value |
|---|---|
| Type | Power Circuits (Automotive) |
| Package Size | Metric 4010 |
| Operating Temperature | -55°C–+150°C |
| Environmental Compliance | Halogen-free, RoHS compliant |
| Inductance | 1μH–22μH |
| Tolerance | ±20% |
| DC Resistance (DCR) | 0.056 Ω–0.570 Ω (typ.) |
| Saturation Current (Isat) | 0.54A–2.2 A (typ.) |
| RMS Current (Irms) | 0.6A–2.2A (typ.) |
Cross Reference & Replacement
Cross-reference alternatives: Cyntec (same-size shielded wire-wound), ROHM (AEC-Q200 shielded inductors) and Microgate (short lead-time option). AS1A4010 matches their pads and core characteristics.
Applications
LED ambient lighting, DRL power
infotainment, instrument cluster, displays
ADAS modules, sensor supply units
FAQ
Q: How slim is AS1A4010?
A: 1.0mm max height in the metric 4010 footprint — for flat-panel and slim-module designs.
Q: What inductance values does AS1A4010 offer?
A: 1μH to 22μH at ±20% tolerance, covering mainstream lighting and display filter values.
