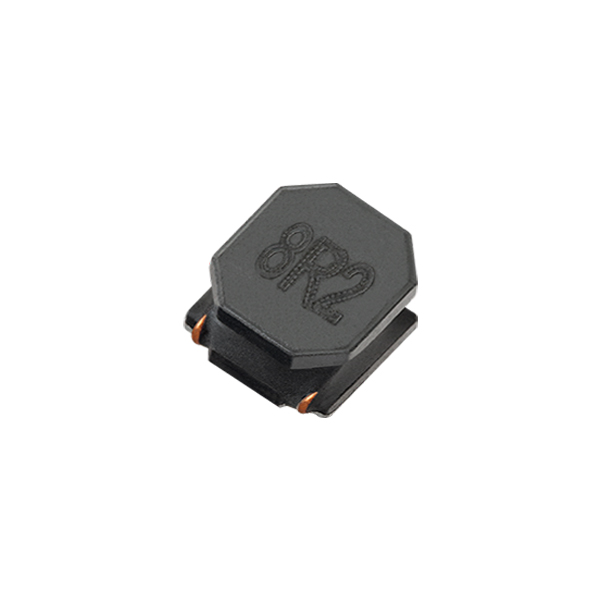

AS1A6020
High performance and high strength ferrite materials, high current and high reliability
- Brand： Sunlord
- Size/Package： 6.0×6.0×2.0mm
- Parameter： 1.0-47μH
- Rated Current： 0.72-3.7A
- Package： SMD
- Operating Temp： -55℃~+150℃
- Applications： ADAS/Infotainment system/LED Lighting/Airbag/Intemet of vehicle
- Parameters
- Brand： Sunlord
- Size/Package： 6.0×6.0×2.0mm
- Parameter： 1.0-47μH
- Rated Current： 0.72-3.7A
- Package： SMD
- Operating Temp： -55℃~+150℃
- Applications： ADAS/Infotainment system/LED Lighting/Airbag/Intemet of vehicle
Automotive Power Inductors | AS1A6020
Product Introduction
Sunlord AS1A6020 is the 6020 member of the 2025 AS1A automotive power inductor platform. Closed magnetic circuit, magnetic shielding and AEC-Q200 qualification deliver 1–47μH with Isat up to 7.4A for LED headlights, BMS, OBC, DC-DC and ADAS rails up to +150°C.
Core Advantages
- Isat up to 7.4A: solid current margin for mid/high-power automotive rails.
- Low DCR from 19mΩ: efficient power conversion in 6020 class.
- 1–47μH coverage: mainstream power-stage and filter values in one footprint.
- Heat-resistant +150°C: 2025 AS1A platform for high-temperature environments.
- AEC-Q200 qualified: magnetic shielding, halogen-free, RoHS compliant.
Key Specifications
| Parameter | Value |
|---|---|
| Type | Power Circuits (Automotive) |
| Package Size | Metric 6020 |
| Operating Temperature | -55°C–+150°C |
| Environmental Compliance | Halogen-free, RoHS compliant |
| Inductance | 1μH–47μH |
| Tolerance | ±20% |
| DC Resistance (DCR) | 0.019 Ω–0.510 Ω (typ.) |
| Saturation Current (Isat) | 0.9A–7.4 A (typ.) |
| RMS Current (Irms) | 0.8A–4.2A (typ.) |
Cross Reference & Replacement
Cross-reference alternatives: TDK (same-size AEC-Q200 shielded wire-wound), Murata (stable global supply) and Fenghua Advanced (short lead-time option). AS1A6020 matches their pads and key electricals.
Applications
LED headlight drivers, ambient lighting, DRL
BMS, OBC, DC-DC converters
infotainment, instrument cluster, displays
ADAS modules, sensor supply units
FAQ
Q: Is AS1A6020 suitable for BMS applications?
A: Yes — 1–47μH with Isat up to 7.4A and -55~+150°C range matches BMS cell-balancing and DC-DC rails.
Q: What is the DCR of AS1A6020?
A: 19–510mΩ typical depending on inductance value.
