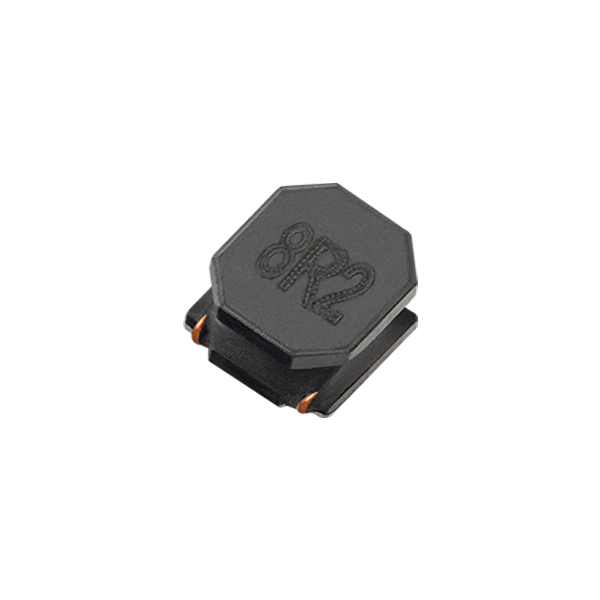

AS1A6028
High performance and high strength ferrite materials, high current and high reliability
- Brand： Sunlord
- Size/Package： 6.0×6.0×2.8mm
- Parameter： 1.0-220μH
- Rated Current： 0.5-5.2A
- Package： SMD
- Operating Temp： -55℃~+150℃
- Applications： ADAS/Infotainment system/LED Lighting/Airbag/Intemet of vehicle
- Parameters
- Brand： Sunlord
- Size/Package： 6.0×6.0×2.8mm
- Parameter： 1.0-220μH
- Rated Current： 0.5-5.2A
- Package： SMD
- Operating Temp： -55℃~+150℃
- Applications： ADAS/Infotainment system/LED Lighting/Airbag/Intemet of vehicle
Automotive Power Inductors | AS1A6028
Product Introduction
Sunlord AS1A6028 is the 6028 member of the 2025 AS1A automotive power inductor platform with inductance coverage up to 220μH. Magnetic shielding, closed magnetic circuit and AEC-Q200 qualification serve LED lighting, BMS, OBC, DC-DC and ADAS rails up to +150°C.
Core Advantages
- Up to 220μH: high-value filter chokes and low-current regulator rails in one footprint.
- Isat up to 7.5A: strong current capability at low inductance values.
- Ultra-low DCR from 10mΩ: high efficiency in mid-power automotive rails.
- Heat-resistant +150°C: 2025 AS1A platform for high-temperature zones.
- AEC-Q200 qualified: magnetic shielding, halogen-free, RoHS compliant.
Key Specifications
| Parameter | Value |
|---|---|
| Type | Power Circuits (Automotive) |
| Package Size | Metric 6028 |
| Operating Temperature | -55°C–+150°C |
| Environmental Compliance | Halogen-free, RoHS compliant |
| Inductance | 1μH–220μH |
| Tolerance | ±20% |
| DC Resistance (DCR) | 0.01 Ω–1.4 Ω (typ.) |
| Saturation Current (Isat) | 0.6A–7.5 A (typ.) |
| RMS Current (Irms) | 0.55A–5.9A (typ.) |
Cross Reference & Replacement
Cross-reference alternatives: TDK (same-size AEC-Q200 shielded wire-wound), Murata (stable global supply) and Fenghua Advanced (short lead-time alternative). AS1A6028 matches their pads and key electricals.
Applications
LED headlight drivers, ambient lighting, DRL
BMS, OBC, DC-DC converters
infotainment, instrument cluster, displays
ADAS modules, sensor supply units
FAQ
Q: What is the maximum inductance of AS1A6028?
A: 220μH — ideal for EMI filter chokes and low-current automotive regulators.
Q: Does AS1A6028 support +150°C?
A: Yes — AS1A series is rated -55°C to +150°C including self-temperature rise.
