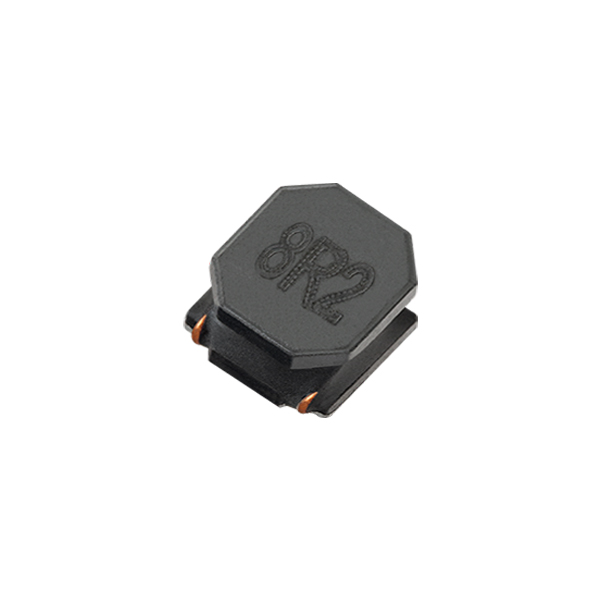

AS1A8030
High performance and high strength ferrite materials, high current and high reliability
- Brand： Sunlord
- Size/Package： 8.0×8.0×3.0mm
- Parameter： 1.0-47μH
- Rated Current： 1.3-6.2A
- Package： SMD
- Operating Temp： -55℃~+150℃
- Applications： ADAS/Infotainment system/LED Lighting/Airbag/Intemet of vehicle
- Parameters
- Brand： Sunlord
- Size/Package： 8.0×8.0×3.0mm
- Parameter： 1.0-47μH
- Rated Current： 1.3-6.2A
- Package： SMD
- Operating Temp： -55℃~+150℃
- Applications： ADAS/Infotainment system/LED Lighting/Airbag/Intemet of vehicle
Automotive Power Inductors | AS1A8030
Product Introduction
Sunlord AS1A8030 is the large-format member of the 2025 AS1A automotive power inductor platform. In an 8.0×8.0×3.0mm shielded package it delivers DCR from 9mΩ with Isat up to 9.3A for LED lighting, BMS, OBC, DC-DC and ADAS rails up to +150°C.
Core Advantages
- Ultra-low DCR from 9mΩ: the lowest conduction loss in the AS1A family for high-current rails.
- Isat up to 9.3A: heavy-load capability in the 8030 class.
- Closed magnetic circuit: magnetic shielding keeps EMI low around ADAS modules.
- Heat-resistant +150°C: 2025 AS1A platform for high-temperature zones.
- AEC-Q200 qualified: halogen-free, RoHS compliant.
Key Specifications
| Parameter | Value |
|---|---|
| Type | Power Circuits (Automotive) |
| Package Size | Metric 6045 |
| Operating Temperature | -55°C–+150°C |
| Environmental Compliance | Halogen-free, RoHS compliant |
| Inductance | 1μH–47μH |
| Tolerance | ±20% |
| DC Resistance (DCR) | 0.009 Ω–0.170 Ω (typ.) |
| Saturation Current (Isat) | 1.4A–9.3 A (typ.) |
| RMS Current (Irms) | 1.7A–7.6A (typ.) |
Cross Reference & Replacement
Cross-reference alternatives: Cyntec (global wire-wound benchmark with compatible pads), Murata (stable automotive supply) and Sumida (Japanese AEC-Q200 power inductors). AS1A8030 matches their pads and core electricals.
Applications
LED headlight drivers, ambient lighting, DRL
BMS, OBC, DC-DC converters
infotainment, instrument cluster, displays
ADAS modules, sensor supply units
FAQ
Q: How low is the DCR of AS1A8030?
A: 9–170mΩ typical depending on inductance value — the lowest in the AS1A series.
Q: Is AS1A8030 a 2025 AS1A platform part?
A: Yes — heat-resistant to +150°C with low-loss materials and full AEC-Q200 qualification.
