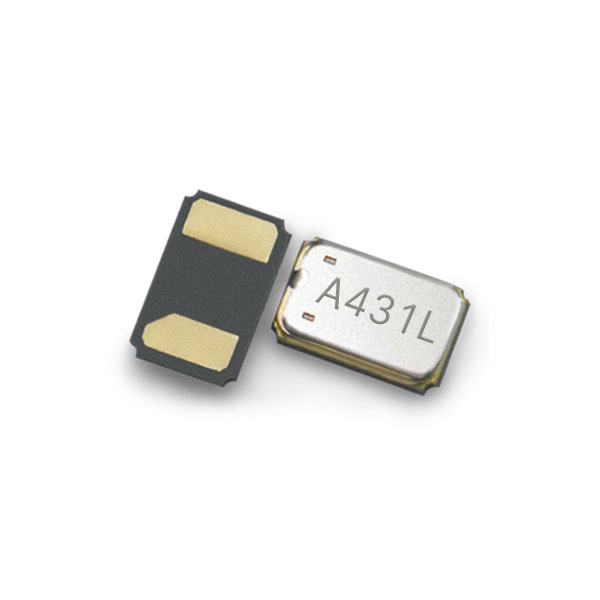

FC1610BN
- Brand： EPSON
- Size/Package： 1.6 x 1.0 x 0.5 mm
- Parameter： 32.768KHz
- Load Cap： 7,9,12.5pF
- Freq Tolerance： ±20ppm
- Operating Temp： -40℃~+105℃
- Package： 2P 1610
- Applications： IoT Devices, Modules, etc
- Parameters
- Brand： EPSON
- Size/Package： 1.6 x 1.0 x 0.5 mm
- Parameter： 32.768KHz
- Load Cap： 7,9,12.5pF
- Freq Tolerance： ±20ppm
- Operating Temp： -40℃~+105℃
- Package： 2P 1610
- Applications： IoT Devices, Modules, etc

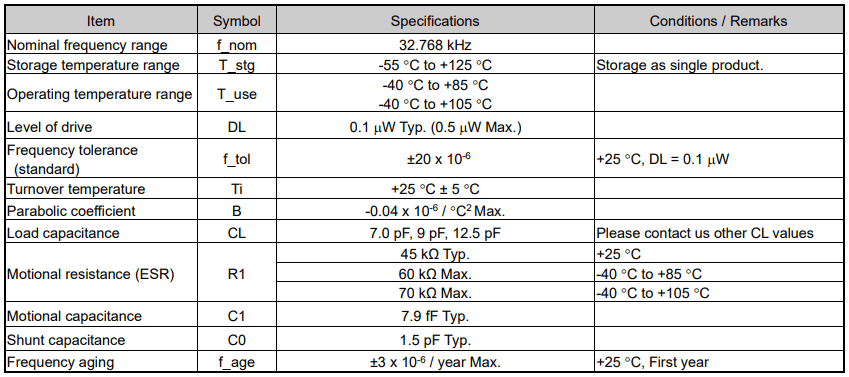

Specifications

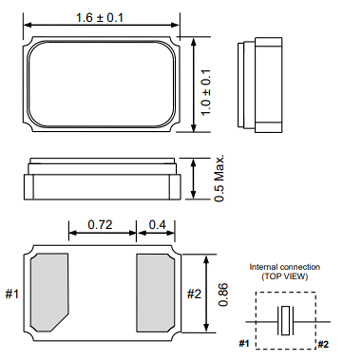

External dimensions
(Unit: mm)
Footprint
(Unit: mm)
