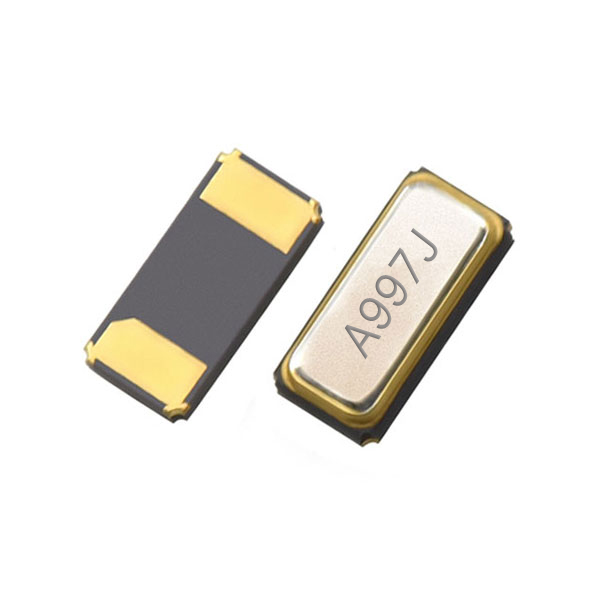

FC3215AN
Crystal; Low power(329nA); Low ESR 50 kΩ Max; Operating temp range of up to +105C.
- Brand： EPSON
- Size/Package： 3.2 x 1.5 x 0.9 mm
- Parameter： 32.768KHz
- Load Cap： 9,12.5pF
- Freq Tolerance： ±20ppm
- Operating Temp： -40℃~+105℃
- Package： 2P 3215
- Applications： loT Devices, Modules, etc.
- Parameters
- Brand： EPSON
- Size/Package： 3.2 x 1.5 x 0.9 mm
- Parameter： 32.768KHz
- Load Cap： 9,12.5pF
- Freq Tolerance： ±20ppm
- Operating Temp： -40℃~+105℃
- Package： 2P 3215
- Applications： loT Devices, Modules, etc.

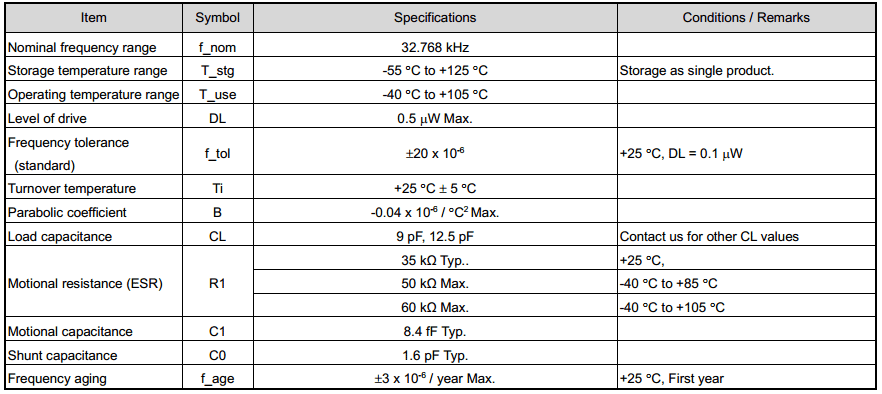

Specifications
External dimensions
(Unit: mm)
Footprint
(Unit: mm)
