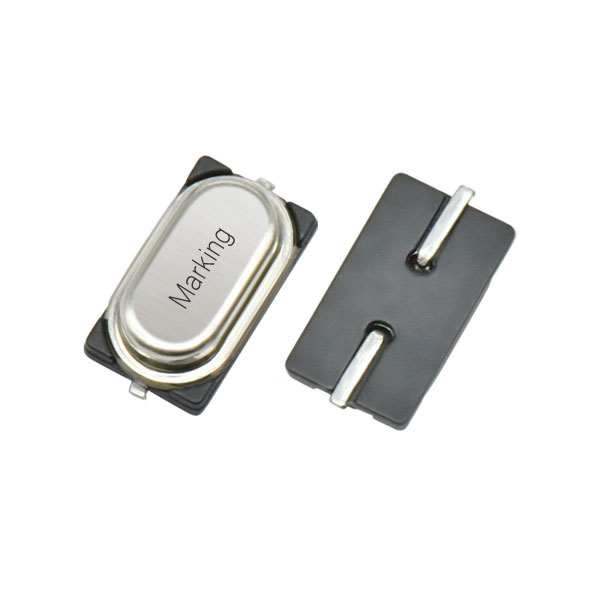

HC-49XSMD
- Brand： YXC
- Size/Package： 6.1 x 4.0 x 2.0 mm
- Parameter： 8-50MHz
- Load Cap： 12,20pF
- Freq Tolerance： ±10,±20ppm
- Operating Temp： -20℃~+70℃
- Package： 2P 49XSMD
- Applications： Industrial Control, Consumers
- Parameters
- Brand： YXC
- Size/Package： 6.1 x 4.0 x 2.0 mm
- Parameter： 8-50MHz
- Load Cap： 12,20pF
- Freq Tolerance： ±10,±20ppm
- Operating Temp： -20℃~+70℃
- Package： 2P 49XSMD
- Applications： Industrial Control, Consumers
Specifications
| Item / Type | HC-49XSMD |
| Nominal Frequency Range | 8 ~ 50 MHz |
| Vibration Mode | AT Fundamental |
| Load Capacitance | 12pF, 20pF, or specify |
| Frequency Tolerance (at 25 ℃) | ±10 ppm,± 20 ppm, or specify |
| Frequency Versus Temperature Characteristics | ± 20 ppm, or specify |
| Operating Temperature | - 20 ~ + 70 ℃ , - 40 ~ + 85 ℃, or specify |
| Storage Temperature | -40 ~ +85 ℃, or specify |
| Shunt Capacitance | 5 pF Max. |
| Level of Drive | 0.01 ~ 1000 μW |
| Frequency Aging (at 25 ℃) | ± 3 ppm / year Max. |

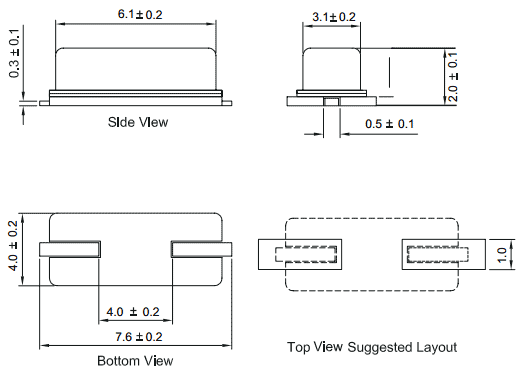

External dimensions
(Unit: mm)
