MWSD1608-CP

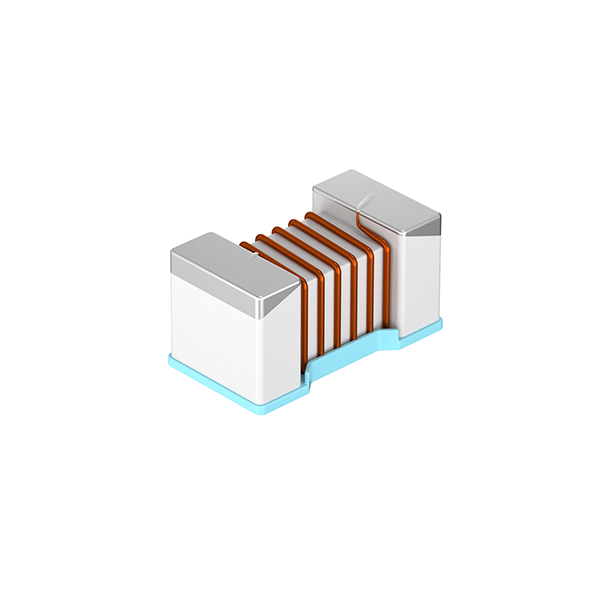

Small chip suitable for surface mounting, High Q value and high self-resonant frequency with ceramic materia
- Brand： Sunlord
- Size/Package： 1608 (0603 inch)
- Parameter： 1.8 - 390nH
- Rated Current： 170 - 2100mA
- Package： SMD
- Operating Temp： -40℃~+125℃
- Applications： Mobile phones, Bluetooth, communication equipment
- Parameters
- Brand： Sunlord
- Size/Package： 1608 (0603 inch)
- Parameter： 1.8 - 390nH
- Rated Current： 170 - 2100mA
- Package： SMD
- Operating Temp： -40℃~+125℃
- Applications： Mobile phones, Bluetooth, communication equipment
RF Wire-Wound Inductors | MWSD1608-CP
Product Introduction
Sunlord MWSD1608-CP is the CP upgrade of the MWSD wire-wound ceramic RF inductor in 0603 (1.6×0.8mm). Optimized DCR and rated current deliver higher Q and current capacity in the same package — for high-power wireless modules and RF matching.
Core Advantages
- Upgraded DCR & current: up to 2100mA with DCR from 0.033Ω versus the base C series.
- Higher Q in 0603: 13–49 with low HF loss for matching circuits.
- Wide 1.8–390nH: from low-value matching to higher-value filtering.
- SRF up to 16GHz: covers BT, WiFi and 5G Sub-6G bands.
- Halogen-free RoHS: communication, consumer and IoT general use.
Key Specifications
| Parameter | Value |
|---|---|
| Type | High Frequency Circuits |
| Structure / Material | Precision wire-wound + ceramic core |
| Package Size | Metric 1608 |
| Operating Temperature | -40°C–+125°C |
| Environmental Compliance | Halogen-free, RoHS compliant |
| Inductance | 1.8nH–390nH |
| Q Factor | 13–49 |
| Self-Resonant Frequency (SRF) | 880MHz–16000MHz |
| DC Resistance (DCR) | 0.033 Ω–4.770 Ω |
| Rated Current (Ir) | 170mA–2100mA |
Cross Reference & Replacement
Cross-reference alternatives: Murata LQW (industry wire-wound standard), Coilcraft (US RF benchmark) and TDK (Japanese RF inductors). MWSD1608-CP matches their pads and HF characteristics.
Applications
BLE, NB-IoT/LoRa, WiFi modules
smartphone matching, wireless charging matching
smart locks, home sensors, smart meters
wireless nodes, broadband filtering
FAQ
Q: How does CP improve on the base C series?
A: CP optimizes DCR and rated current — higher Q and current capacity in the same 0603 package.
Q: What is the SRF of MWSD1608-CP?
A: 880MHz to 16GHz depending on inductance value.
