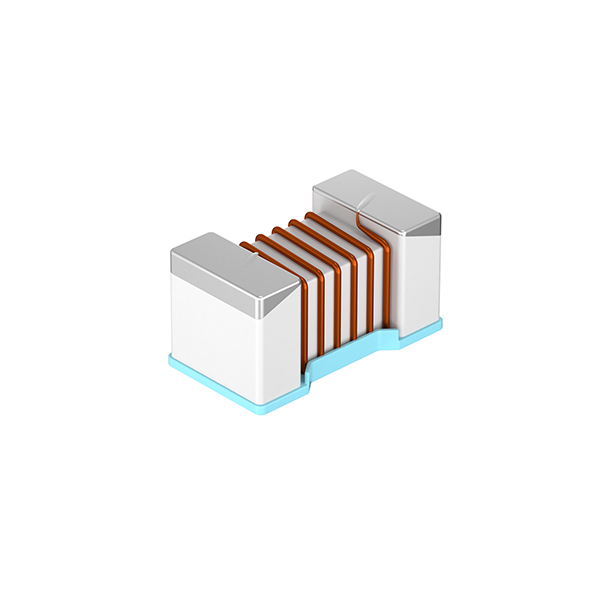

MWSD1608C
Small chip suitable for surface mounting, High Q value and high self-resonant frequency with ceramic materia
- Brand： Sunlord
- Size/Package： 1608 (0603 inch)
- Parameter： 1.0 - 560nH
- Rated Current： 70 - 5000mA
- Package： SMD
- Operating Temp： -40℃~+125℃
- Applications： Mobile phones, Bluetooth, communication equipment
- Parameters
- Brand： Sunlord
- Size/Package： 1608 (0603 inch)
- Parameter： 1.0 - 560nH
- Rated Current： 70 - 5000mA
- Package： SMD
- Operating Temp： -40℃~+125℃
- Applications： Mobile phones, Bluetooth, communication equipment
RF Wire-Wound Inductors | MWSD1608C
Product Introduction
Sunlord MWSD1608C is the standard 0603 wire-wound ceramic RF inductor for high-power wireless equipment. Ceramic core plus precision winding gives higher Q than same-size multilayer parts, lower HF loss and excellent SRF across wide RF values for matching, filtering and resonance.
Core Advantages
- High-power RF ready: 1.8–390nH with up to 2100mA for high-current matching.
- Higher Q than multilayer: 13–49 with lower HF loss.
- SRF up to 16GHz: covers BT, WiFi, 5G Sub-6G bands.
- Multi-grade tolerances: absolute and percentage options for precise matching.
- Halogen-free RoHS: -40~+125°C operation.
Key Specifications
| Parameter | Value |
|---|---|
| Type | High Frequency Circuits |
| Structure / Material | Precision wire-wound + ceramic core |
| Package Size | Metric 1608 |
| Operating Temperature | -40°C–+125°C |
| Environmental Compliance | Halogen-free, RoHS compliant |
| Inductance | 1.8nH–390nH |
| Q Factor | 13–49 |
| Self-Resonant Frequency (SRF) | 880MHz–16000MHz |
| DC Resistance (DCR) | 0.033 Ω–4.77 Ω |
| Rated Current (Ir) | 170mA–2100mA |
Cross Reference & Replacement
Cross-reference alternatives: Murata LQW (industry wire-wound standard), Coilcraft (US RF benchmark) and TDK (Japanese RF inductors). MWSD1608C matches their pads and HF characteristics.
Applications
BT/WiFi/5G modules, RF front-ends
phones, tablets, wireless devices
impedance matching, filtering, resonance
transceiver modules, industrial wireless
FAQ
Q: Is MWSD1608C suitable for high-power RF?
A: Yes — up to 2100mA rated with DCR from 0.033Ω, optimized for high-current RF matching.
Q: What tolerances does MWSD1608C offer?
A: Multi-grade absolute and percentage tolerances for precise RF matching.
