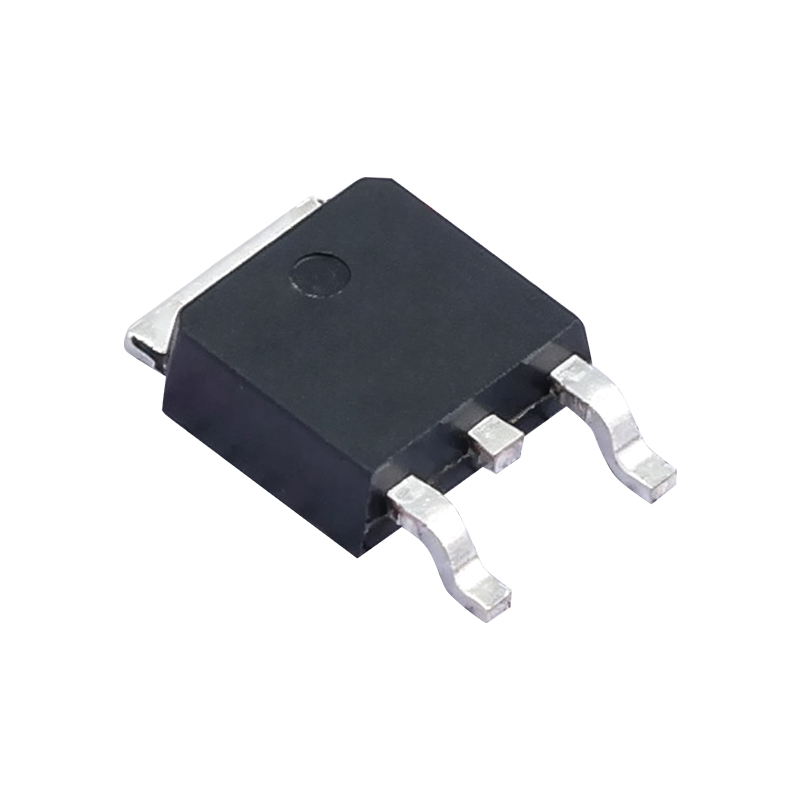

NCE01P13K
Excellent on-resistance, low gate charge, with ESD protection function.
- Brand： NCE
- Size/Package： TO-252-2L
- Parameter： -100V
- RDS(ON)@4.5V TYP： /
- RDS(ON)@10V TYP： 170mΩ
- VGS(th)： -1.9V
- ID： -13A
- Operating Temp： -55-175℃
- Applications： High-power outdoor energy storage, high-voltage PTZ cameras, high-power surveillance, electric two-wheeler battery packs.
- Parameters
- Brand： NCE
- Size/Package： TO-252-2L
- Parameter： -100V
- RDS(ON)@4.5V TYP： /
- RDS(ON)@10V TYP： 170mΩ
- VGS(th)： -1.9V
- ID： -13A
- Operating Temp： -55-175℃
- Applications： High-power outdoor energy storage, high-voltage PTZ cameras, high-power surveillance, electric two-wheeler battery packs.
NCE01P13K | 12-150V PMOS
Product Introduction
The NCE01P13K uses advanced trench technology and design to deliver excellent RDS(ON) performance while maintaining low gate charge. This -100V P-channel device is suitable for a wide range of applications and is ESD certified.
Core Advantages
- Excellent on-resistance, low gate charge, ESD protection, 100% UIS TESTED, 100% ΔVds TESTED.
Key Features
Alternative Products and Reasons
- MCC: MCU12P10;
- Vishay: SUD09P10-195;
- ROHM: RD3P130SP.
- Reason: parameters matched, package compatible, no PCB redesign required, enabling cost reduction through domestic sourcing.
Applications
DC/DC converters, power switches, 24~48V power systems, reverse-polarity protection, load switches;
high-side control of small DC motors, fans, power tools, robot vacuum and other small appliance motors;
industrial control boards, routers, switches, PLC boards;
adapters, LED drivers, small energy storage power supplies, non-automotive on-board power load switching;
Related Products
FAQ
Q: What applications is this product suitable for?
A: The NCE01P13K is designed for industrial, communications, automotive, and IoT applications. Contact YQM for application-specific recommendations.
Q: Are samples available?
A: Yes, YQM ELECTRONICS provides free samples of NCE01P13K for evaluation. Contact our sales team for quick delivery.
Q: What is the minimum order quantity?
A: MOQ varies by model. YQM offers flexible ordering from prototypes to volume production. Contact us for pricing.
Contact YQM ELECTRONICS for fast samples, competitive pricing, and expert FAE support.
