Brand： NCE
Size/Package： TO-252-2L
Parameter： -60V
RDS(ON)@4.5V TYP： 13mΩ
RDS(ON)@10V TYP： 11mΩ
VGS(th)： -1.8V
ID： -82A
Operating Temp： -55-150℃
Applications： Industrial gateways, telecom power supplies, outdoor energy storage power supplies, water pumps, commercial cleaning equipment.

Download Annex

Parameters

Brand： NCE
Size/Package： TO-252-2L
Parameter： -60V
RDS(ON)@4.5V TYP： 13mΩ
RDS(ON)@10V TYP： 11mΩ
VGS(th)： -1.8V
ID： -82A
Operating Temp： -55-150℃
Applications： Industrial gateways, telecom power supplies, outdoor energy storage power supplies, water pumps, commercial cleaning equipment.

Product Detail

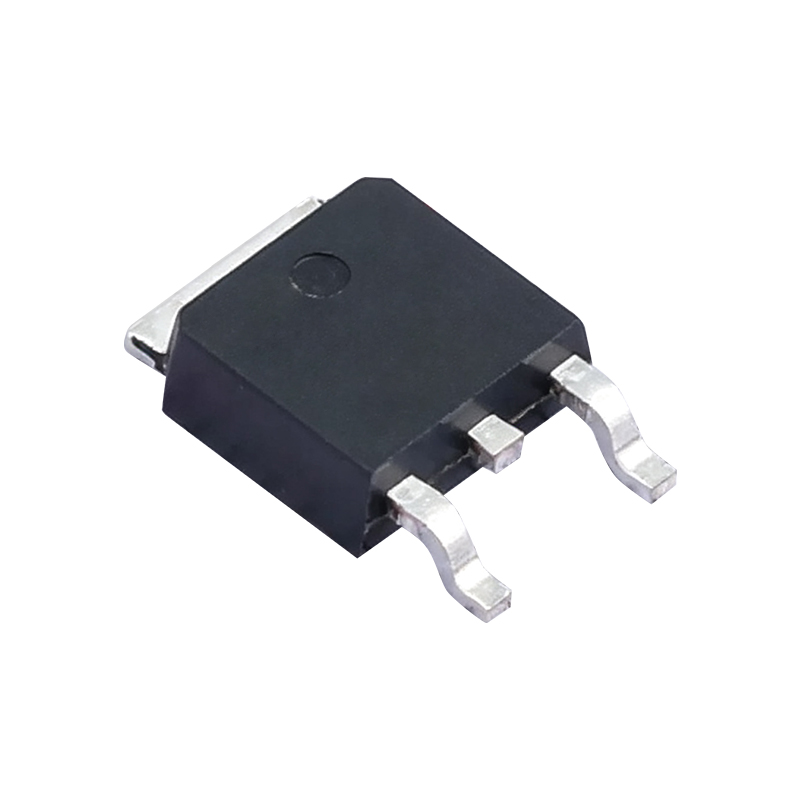

NCE60P82AK | NCE -60V -82A P-Channel MOSFET TO-252-2L | YQM

NCE60P82AK | 12-150V PMOS

-60V Voltage Rating

11mΩ RDS(on) Typical

-82A Continuous Current

TO-252-2L Package

-55-150℃ Temp. Range

Product Introduction

The NCE60P82AK uses advanced trench technology and design to provide excellent RDS(ON) together with low gate charge. This device is particularly suitable for high-current load applications.

Core Advantages

Low on-resistance, low gate charge, fully characterized avalanche voltage and current.

Key Features

Low on-resistanceat VGS=-10V the maximum Rds(on) is only 13mΩ; at VGS=-4.5V (low-voltage drive) the maximum Rds(on) is 16mΩ, so conduction loss stays very low even with low-voltage gate drive;

Low gate chargetypical total gate charge Qg 62.1nC, with good switching delay and rise/fall times; it balances low on-resistance and switching behaviour, making it suitable for switching applications;

Excellent avalanche capability and reliabilitysingle-pulse avalanche energy EAS reaches 722mJ, avalanche voltage and current parameters are fully specified, EAS performance is stable and consistent; every unit is 100% tested for UIS and ΔVds, with strong immunity to surge and avalanche stress;

Built-in body diodeintegrated source-drain freewheeling diode with typical reverse recovery time trr 49ns and typical reverse recovery charge Qrr 71nC; it can be used in freewheeling loops, simplifying the peripheral circuit design;

Alternative Products and Reasons

ROHM: AG501ELD3HRT;
Vishay: SUD50P06-15;
ON: ATP304.
Reason: parameters matched, package compatible, no PCB redesign required, enabling cost reduction through domestic sourcing.

Applications

🌐

Battery

outdoor portable power banks, lithium BMS protection boards, battery packs for cordless drills, angle grinders and impact wrenches;

💻

Motors

robot vacuum, vacuum cleaners, DC fans, water pumps;

📶

Industrial equipment

high-power DC-DC modules, industrial control auxiliary power boards, high-power adapters;

FAQ

Q: What applications is this product suitable for?

A: The NCE60P82AK is designed for industrial, communications, automotive, and IoT applications. Contact YQM for application-specific recommendations.

Q: Are samples available?

A: Yes, YQM ELECTRONICS provides free samples of NCE60P82AK for evaluation. Contact our sales team for quick delivery.

Q: What is the minimum order quantity?

A: MOQ varies by model. YQM offers flexible ordering from prototypes to volume production. Contact us for pricing.

Get NCE60P82AK Samples & Technical Support

Contact YQM ELECTRONICS for fast samples, competitive pricing, and expert FAE support.
