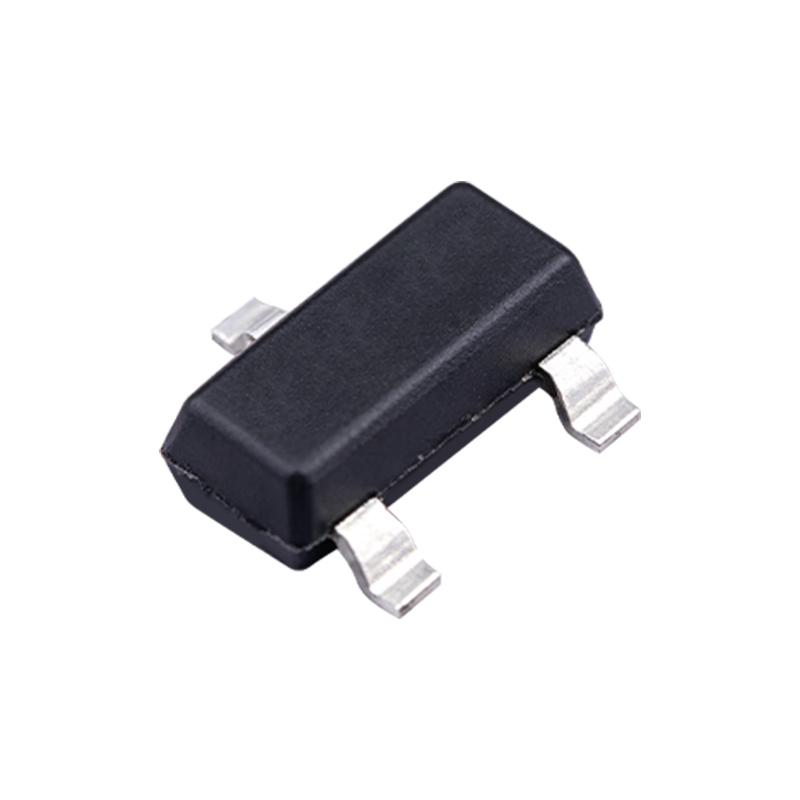

NCE6003X
Low RDS(ON), low gate charge, high power and current handling, SMD package
- Brand： NCE
- Size/Package： SOT-23
- Parameter： 60V
- RDS(ON)@4.5V TYP： 80mΩ
- RDS(ON)@10V TYP： 68mΩ
- VGS(th)： 1.3V
- ID： 3A
- Operating Temp： -55-150℃
- Applications： Power banks, Bluetooth speakers, electric toys, infrared sensors, small water pumps
- Parameters
- Brand： NCE
- Size/Package： SOT-23
- Parameter： 60V
- RDS(ON)@4.5V TYP： 80mΩ
- RDS(ON)@10V TYP： 68mΩ
- VGS(th)： 1.3V
- ID： 3A
- Operating Temp： -55-150℃
- Applications： Power banks, Bluetooth speakers, electric toys, infrared sensors, small water pumps
NCE6003X | 12-300V NMOS
Product Introduction
The NCE6003X uses an advanced trench process to deliver excellent RDS(ON) and low gate charge. This device is suitable for battery protection and other switching applications.
Core Advantages
- Low on-resistance, low gate charge, high power and high current handling; 60V/3A in SOT-23; VGS(th) max 2.0V for 3.3V MCU drive; EAS=16mJ; surface-mount package
Key Features
Alternative Products and Reasons
- Infineon: IRLML0060;
- ON: FDN86501LZ;
- Vishay: SQ2362ES. Replacement reason: matching parameters, compatible package, no PCB redesign required, enabling localized cost reduction.
Applications
2-6S small lithium battery protection boards, 24V small battery modules, small lead-acid battery management boards, portable high-voltage small energy storage modules;
24V LED strip driver boards, industrial LED luminaires, solar high-voltage light strings, small emergency lighting power boards;
industrial sensor modules, PLCs, relay driver boards, solenoid valve control boards, 24V input small DC-DC power modules;
fans, small water pumps, cameras, access control, toys.
Related Products
FAQ
Q: What applications is this product suitable for?
A: The NCE6003X is designed for industrial, communications, automotive, and IoT applications. Contact YQM for application-specific recommendations.
Q: Are samples available?
A: Yes, YQM ELECTRONICS provides free samples of NCE6003X for evaluation. Contact our sales team for quick delivery.
Q: What is the minimum order quantity?
A: MOQ varies by model. YQM offers flexible ordering from prototypes to volume production. Contact us for pricing.
