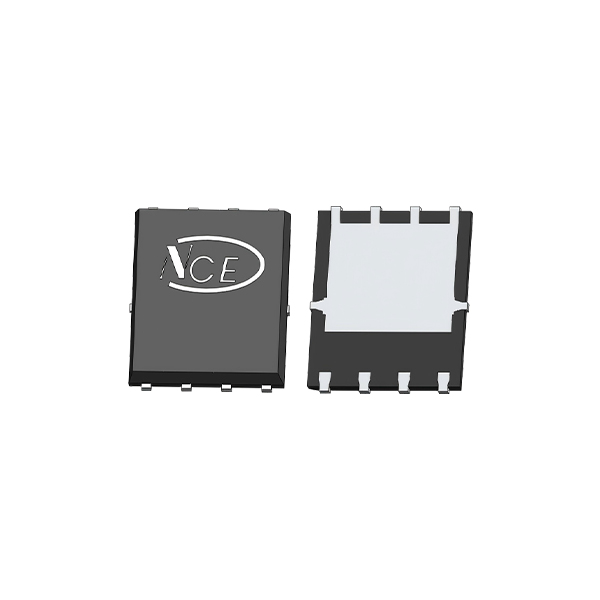

NCEP40T11G
Ultra-low on-resistance, low gate charge, 100% UIS tested
- Brand： NCE
- Size/Package： DFN5X6-8L
- Parameter： 40V
- RDS(ON)@4.5V TYP： 3.3mΩ
- RDS(ON)@10V TYP： 2.2mΩ
- VGS(th)： 1.7V
- ID： 110A
- Operating Temp： -55-150℃
- Applications： Drone power ESCs, servers, telecom power supplies, industrial routers, energy storage BMS boards
- Parameters
- Brand： NCE
- Size/Package： DFN5X6-8L
- Parameter： 40V
- RDS(ON)@4.5V TYP： 3.3mΩ
- RDS(ON)@10V TYP： 2.2mΩ
- VGS(th)： 1.7V
- ID： 110A
- Operating Temp： -55-150℃
- Applications： Drone power ESCs, servers, telecom power supplies, industrial routers, energy storage BMS boards
NCEP40T11G | 12-300V NMOS
Product Introduction
The NCEP40T11G uses Super Trench technology, uniquely optimized to deliver the most efficient high-frequency switching performance. Thanks to the very low combined RDS(ON) and Qg, both conduction loss and switching loss are minimized. This device is ideal for high-frequency switching and synchronous rectification applications.
Core Advantages
- Ultra-low on-resistance, low gate charge, 100% UIS tested; 40V/110A in DFN5X6-8L; RDS(ON) 2.2mΩ@10V; EAS=500mJ; excellent heat dissipation with RθJC=1.25℃/W
Key Features
Alternative Products and Reasons
- AOS: AON6144;
- MCC: MCAC130N
- Replacement reason: matching parameters, compatible package, no PCB redesign required, enabling localized cost reduction.
Applications
portable energy storage power supplies, BMS, PD fast charging, multi-port high-power adapters, small UPS, industrial modular power supplies;
handheld lithium tools, robot vacuums, washing machines, drones, heavy-duty DC water pumps, high-power fans, AGVs, light electric vehicles;
servers, switches, 5G equipment, industrial control boards, high-power PoE modules.
Related Products
FAQ
Q: What applications is this product suitable for?
A: The NCEP40T11G is designed for industrial, communications, automotive, and IoT applications. Contact YQM for application-specific recommendations.
Q: Are samples available?
A: Yes, YQM ELECTRONICS provides free samples of NCEP40T11G for evaluation. Contact our sales team for quick delivery.
Q: What is the minimum order quantity?
A: MOQ varies by model. YQM offers flexible ordering from prototypes to volume production. Contact us for pricing.
Contact YQM ELECTRONICS for fast samples, competitive pricing, and expert FAE support.
