Brand： NCE
Size/Package： SOP-8
Parameter： -60V
RDS(ON)@4.5V TYP： /
RDS(ON)@10V TYP： 32mΩ
VGS(th)： -2.6V
ID： -9A
Operating Temp： -55-150℃
Applications： Industrial wireless AP, industrial gateways, instruments, portable energy storage, small outdoor power supplies.

Download Annex

Parameters

Brand： NCE
Size/Package： SOP-8
Parameter： -60V
RDS(ON)@4.5V TYP： /
RDS(ON)@10V TYP： 32mΩ
VGS(th)： -2.6V
ID： -9A
Operating Temp： -55-150℃
Applications： Industrial wireless AP, industrial gateways, instruments, portable energy storage, small outdoor power supplies.

Product Detail

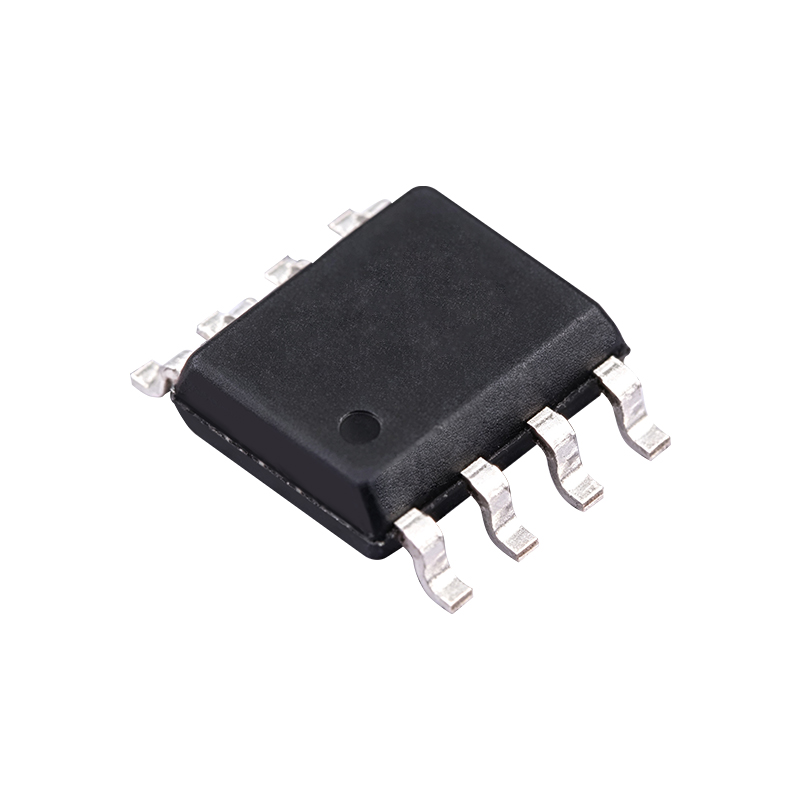

NCE60P09S | NCE -60V -9A P-Channel MOSFET SOP-8 | YQM

NCE60P09S | 12-150V PMOS

-60V Voltage Rating

32mΩ RDS(on) Typical

-9A Continuous Current

SOP-8 Package

-55-150℃ Temp. Range

Product Introduction

The NCE60P09S uses advanced trench technology and design to achieve excellent RDS(ON) performance with low gate charge, making it suitable for a wide range of applications.

Core Advantages

Excellent on-resistance, low gate charge, fully characterized avalanche voltage and current, superior package with good heat dissipation.

Key Features

Low on-resistanceat VGS=-10V, Rds(on) is only 38mΩ maximum and 32mΩ typical, giving low conduction loss; the high-density cell design achieves extremely low on-resistance and lower heating;

Excellent avalanche ruggednessavalanche voltage and current parameters are fully characterized, single-pulse avalanche energy EAS=156mJ, 100% UIS avalanche tested, high EAS performance, good device stability and consistency, strong surge immunity;

Balanced switching performancetypical total gate charge Qg 42.5nC, optimized input and output capacitance, good switching delay and rise/fall times, suitable for hard-switching and high-frequency circuits;

Good package heat dissipationSOP-8 surface-mount package with multiple drain pins connected in parallel to aid heat dissipation;

Applications

🌐

Power

UPS, DC-DC converters, battery protection boards;

💻

Portable devices

portable industrial equipment, handheld instruments, small portable energy storage modules;

📶

Small appliances

fans, small water pumps, robot vacuum, small robots, power supplies for kitchen appliance control boards;

FAQ

Q: What applications is this product suitable for?

A: The NCE60P09S is designed for industrial, communications, automotive, and IoT applications. Contact YQM for application-specific recommendations.

Q: Are samples available?

A: Yes, YQM ELECTRONICS provides free samples of NCE60P09S for evaluation. Contact our sales team for quick delivery.

Q: What is the minimum order quantity?

A: MOQ varies by model. YQM offers flexible ordering from prototypes to volume production. Contact us for pricing.

Get NCE60P09S Samples & Technical Support

Contact YQM ELECTRONICS for fast samples, competitive pricing, and expert FAE support.
