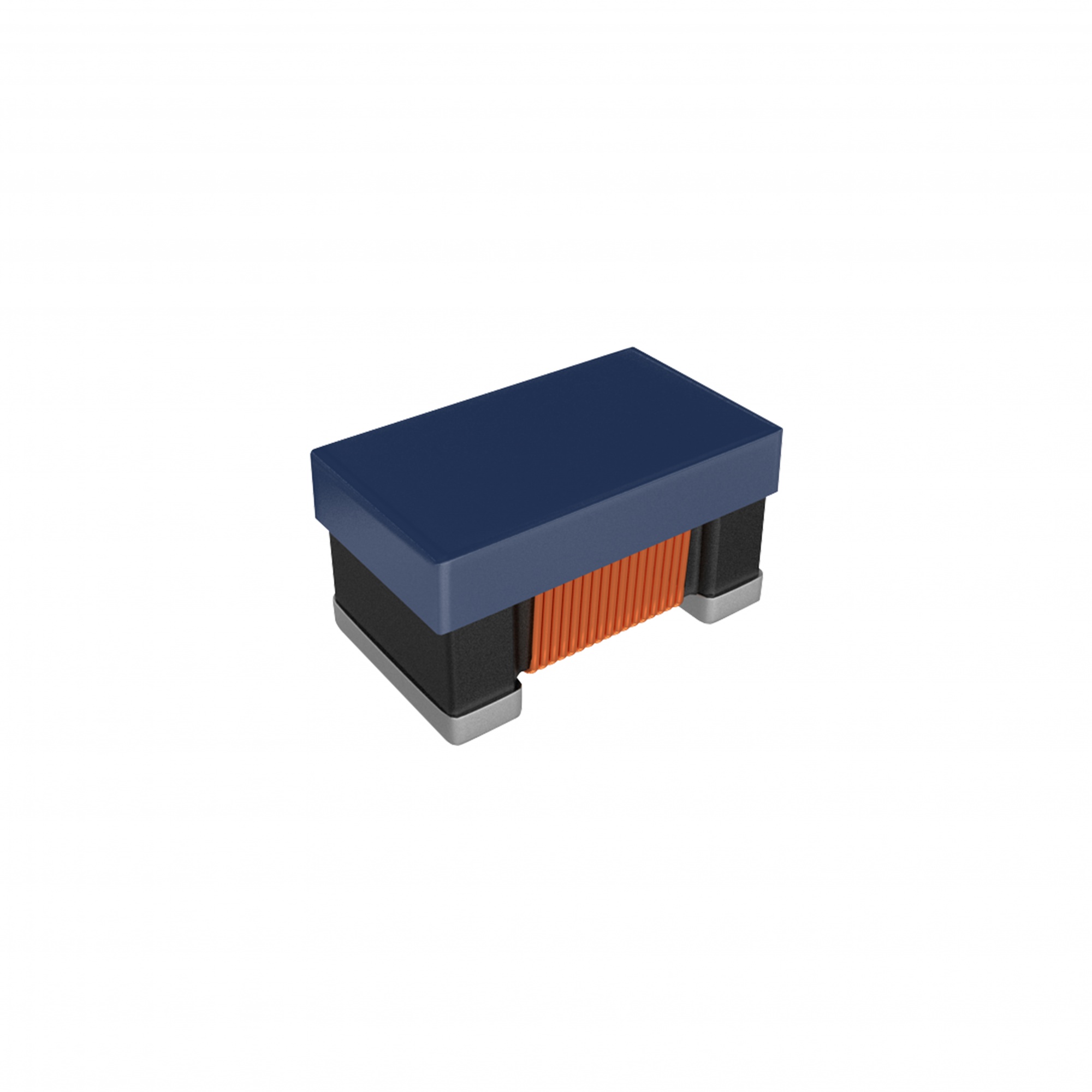

SDWL3216FW
Small chip suitable for surface mounting, Large inductance with ferrite material
- Brand： Sunlord
- Size/Package： 3216 (1206 inch)
- Parameter： 1.5 - 18μH
- Rated Current： 130 - 320mA
- Package： SMD
- Operating Temp： -40℃~+85℃
- Applications： lquid crystal television and other electronic devices
- Parameters
- Brand： Sunlord
- Size/Package： 3216 (1206 inch)
- Parameter： 1.5 - 18μH
- Rated Current： 130 - 320mA
- Package： SMD
- Operating Temp： -40℃~+85℃
- Applications： lquid crystal television and other electronic devices
High-Current Ferrite Inductors | SDWL3216FW
Product Introduction
Sunlord SDWL3216FW is the 1206 mainstay of the SDWL FW high-current platform — wire-wound ferrite for mid/high-power DC-DC conversion and choking. Versus the 2012 size it adds inductance coverage and current capability with excellent DCR for networking, industrial power and automotive electronics (select P/Ns AEC-Q200).
Core Advantages
- 0.6–18μH coverage: bigger inductance and higher current than the 2012 FW class.
- Low DCR performance: from 0.4Ω for efficient mid-power DC-DC.
- FW high-current platform: ferrite wire-wound optimized for power and choking.
- Automotive-ready: select P/Ns AEC-Q200 qualified.
- Halogen-free RoHS: standard SMT reflow compatible.
Key Specifications
| Parameter | Value |
|---|---|
| Type | 信号电路 |
| Structure / Material | Precision wire-wound structure |
| Package Size | Metric 3216 |
| Operating Temperature | -40°C–+85°C |
| Environmental Compliance | Halogen-free, RoHS compliant |
| Inductance | (μH)：0.6μH–18μH |
| Self-Resonant Frequency (SRF) | 80MHz–500MHz |
| DC Resistance (DCR) | 0.4 Ω–9 Ω |
| Rated Current (Ir) | 130mA–300mA |
Cross Reference & Replacement
Cross-reference alternatives: Murata LQM (ferrite power inductors), TDK (Japanese ferrite standard) and Fenghua Advanced (short lead-time option). SDWL3216FW matches their pads and current characteristics.
Applications
DC-DC power, HF choking
DC-DC converters, chokes
mid/high-power DC-DC (select P/Ns AEC-Q200)
FAQ
Q: What is the FW platform advantage in 3216?
A: More inductance and higher current than the 2012 FW class with excellent DCR — the mainstay for mid/high-power DC-DC.
Q: Is SDWL3216FW qualified for automotive?
A: Select P/Ns are AEC-Q200 qualified for automotive DC-DC and choking.
