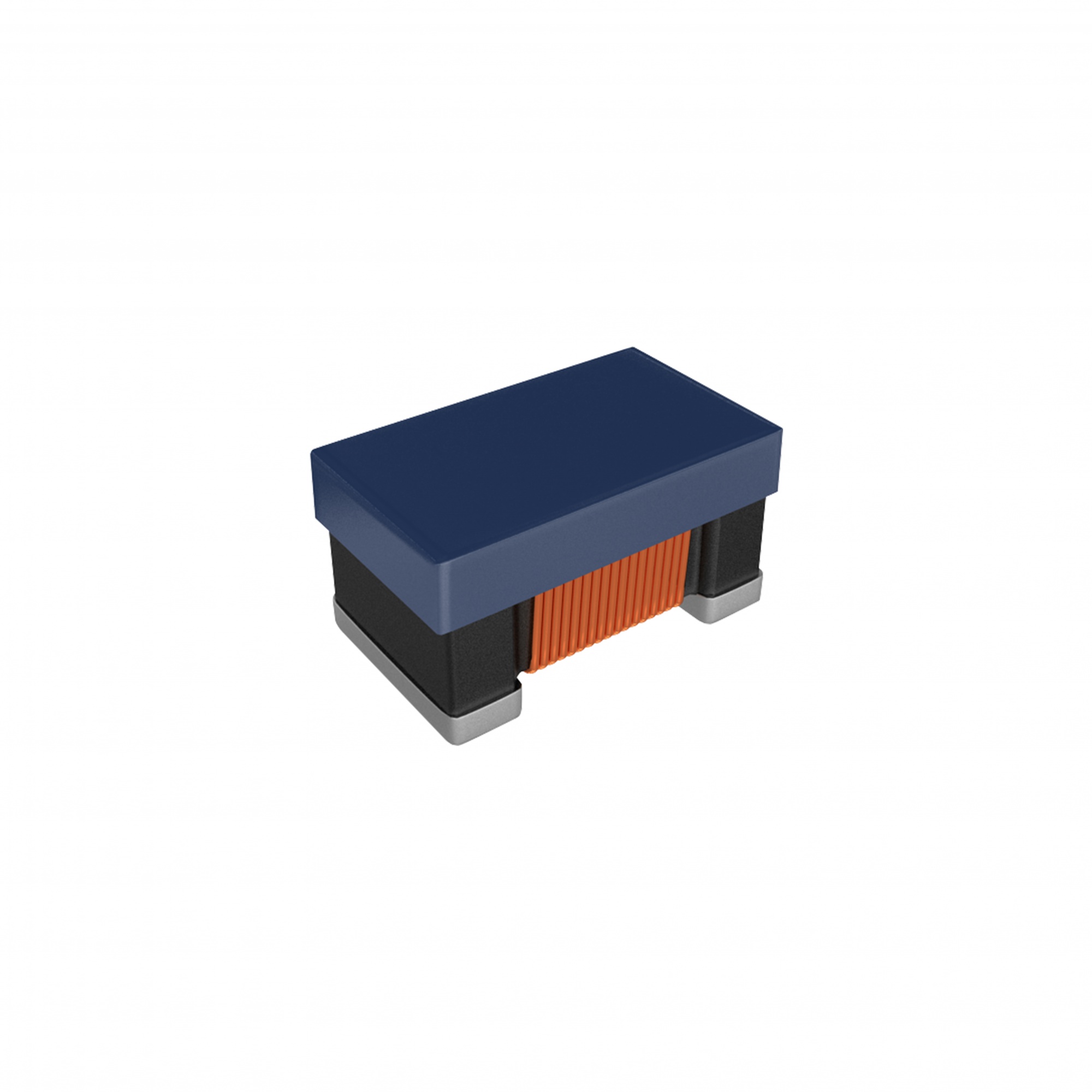

SDWL3225FW
Small chip suitable for surface mounting, Large inductance with ferrite material
- Brand： Sunlord
- Size/Package： 3225 (1210 inch)
- Parameter： 0.12 -12μH
- Rated Current： 140 - 450mA
- Package： SMD
- Operating Temp： -40℃~+85℃
- Applications： lquid crystal television and other electronic devices
- Parameters
- Brand： Sunlord
- Size/Package： 3225 (1210 inch)
- Parameter： 0.12 -12μH
- Rated Current： 140 - 450mA
- Package： SMD
- Operating Temp： -40℃~+85℃
- Applications： lquid crystal television and other electronic devices
High-Current Ferrite Inductors | SDWL3225FW
Product Introduction
Sunlord SDWL3225FW is the large-size mainstay of the SDWL FW platform — wire-wound ferrite for high-power DC-DC conversion and high-current choking. The biggest inductance coverage and current capability of the FW series with industry-leading DCR for 5G communications, server power and automotive high-power stages (select P/Ns AEC-Q200).
Core Advantages
- FW series maximum coverage: 0.12–68μH — the largest in the FW platform.
- Highest current capability: industry-leading DCR performance in the 1210 ferrite class.
- High-power DC-DC ready: server power, 5G infrastructure and automotive stages.
- Automotive-ready: select P/Ns AEC-Q200 qualified.
- Halogen-free RoHS: standard SMT reflow compatible.
Key Specifications
| Parameter | Value |
|---|---|
| Type | 信号电路 |
| Structure / Material | Precision wire-wound structure |
| Package Size | Metric 3225 |
| Operating Temperature | -40°C–+85°C |
| Environmental Compliance | Halogen-free, RoHS compliant |
| Inductance | (μH)：0.12μH–68μH |
| Self-Resonant Frequency (SRF) | 15MHz–500MHz |
| DC Resistance (DCR) | 0.22 Ω–11 Ω |
| Rated Current (Ir) | 80mA–450mA |
Cross Reference & Replacement
Cross-reference alternatives: Murata LQM (ferrite power inductors), TDK (Japanese ferrite standard) and Fenghua Advanced (short lead-time option). SDWL3225FW matches their pads and current characteristics.
Applications
base-station power, RF power stages
high-power DC-DC, chokes
high-power DC-DC (select P/Ns AEC-Q200)
FAQ
Q: What is SDWL3225FW optimized for?
A: High-power DC-DC conversion and high-current choking — the largest inductance and current of the FW platform.
Q: Is SDWL3225FW suitable for 5G infrastructure?
A: Yes — wide 0.12–68μH coverage with leading DCR for 5G base-station and server power rails.
