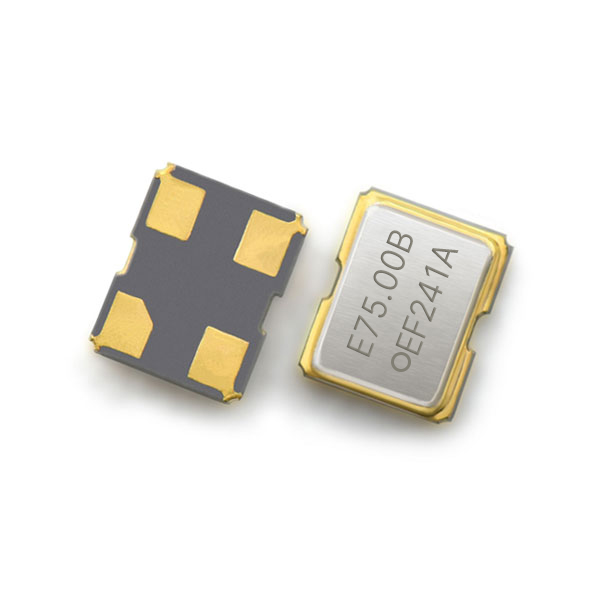

SG-8200CJ
- Brand： EPSON
- Size/Package： 2.0 x 1.6 x 0.6 mm
- Parameter： 1.2-170MHz
- Supply Voltage： 1.62-3.63V
- Output： CMOS
- Freq Tolerance： ±50PPM
- Operating Temp： -40~+125℃
- Package： 4P 2016
- Parameters
- Brand： EPSON
- Size/Package： 2.0 x 1.6 x 0.6 mm
- Parameter： 1.2-170MHz
- Supply Voltage： 1.62-3.63V
- Output： CMOS
- Freq Tolerance： ±50PPM
- Operating Temp： -40~+125℃
- Package： 4P 2016

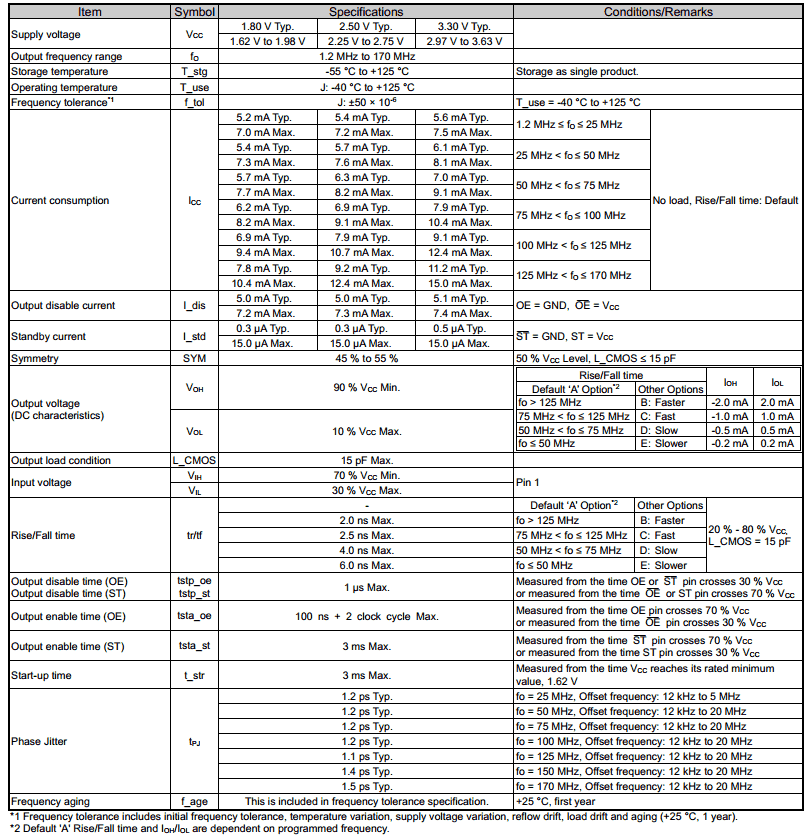

Specifications

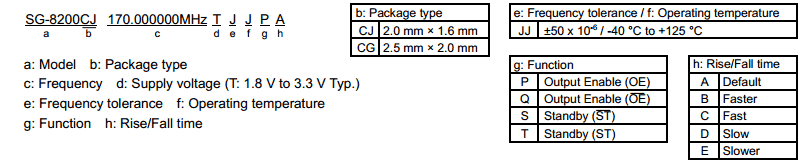

Product name

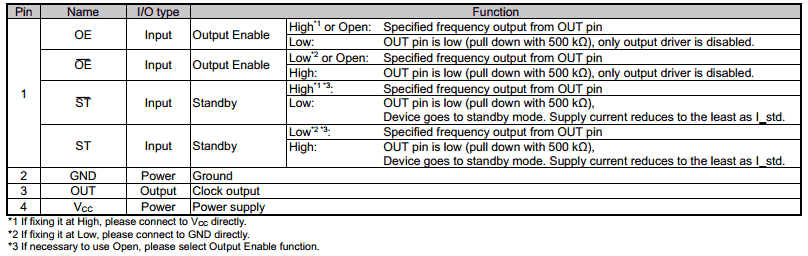

Pin description

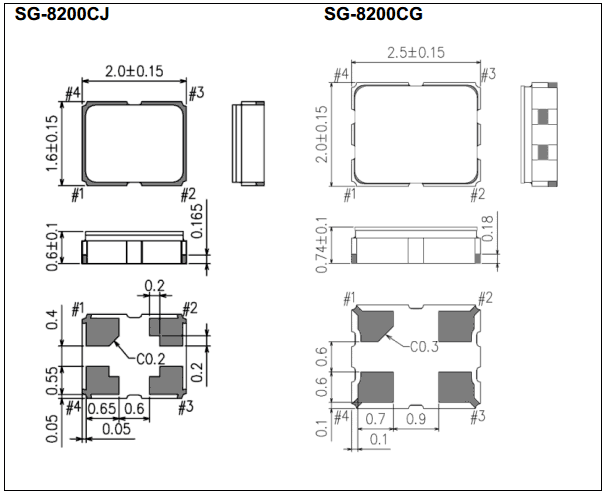

External dimensions
(Unit: mm)
To maintain stable operation, provide a 0.1uF by-pass capacitor at a location as near as
possible to the power source terminal of the crystal product (between Vcc - GND).
Footprint
(Unit: mm)
