SIT2019

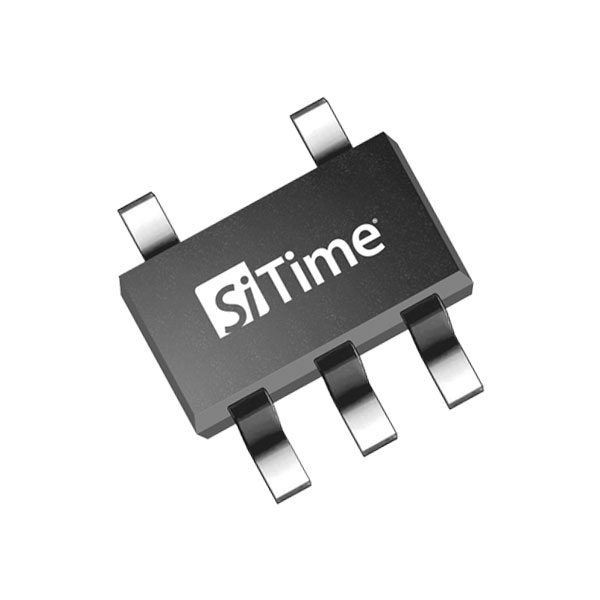

The SiT2019B oscillator comes in a SOT23 package for the best board-level solder joint reliability and low-cost, optical-ONLY board-level inspection. This device features a wide frequency range, excellent stability, and the shortest lead time for industrial, medical, automotive, avionics, and other high-temperature applications. This device also features the industry's best 0.1 ppb/g vibration sensitivity, 50,000 g shock and 70 g vibration resistance.

Specifications

Features

+/-20 ppm over automotive temp. (-40 to 125 °C)

• Better timing margin ideal for outdoor and high-temp. operating environment


Configurable feature sets

• Any frequency between 110 to 137 MHz with 6 decimal places of accuracy

• 1.8 V or 2.5 V to 3.3 V supply voltage

• Customize specification for optimal system performance

• Use same base device for many design, reducing qualification needs


0.1 ppb/g low g-sensitivity

• Improved system performance under vibration

• Carrier drop-test compliance (STB, etc.);


70 g vibration and 50,000 g shock

• Best system reliability in harsh environments;


FlexEdge™ rise/fall time

• Optimize EMI to reduce interference to other subsystems;


SOT23-5 package

• Best board-level soldering joint reliability

• Easy, low-cost, optical-only, board-level inspection of solder joint;
