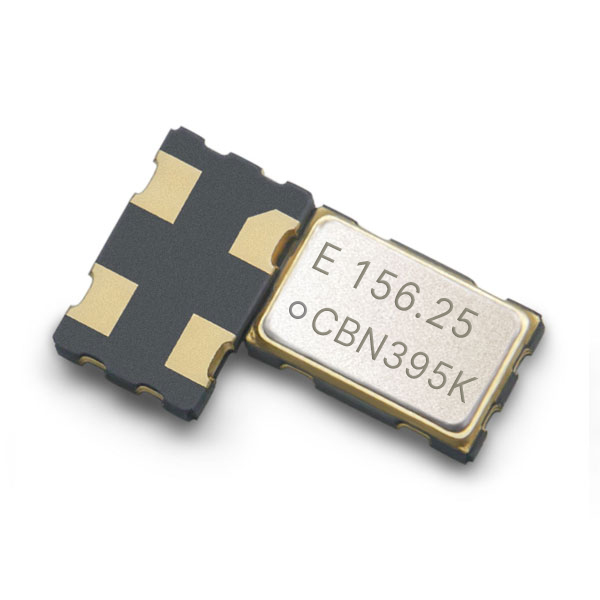

SG5032CCN
- Brand： EPSON
- Size/Package： 5.0 x 3.2 x 1.1 mm
- Parameter： 2.5-50MHz
- Supply Voltage： 4.5-5.5V
- Output： CMOS
- Freq Tolerance： ±50ppm
- Operating Temp： -40℃~+85℃
- Package： 4P 5032
- Parameters
- Brand： EPSON
- Size/Package： 5.0 x 3.2 x 1.1 mm
- Parameter： 2.5-50MHz
- Supply Voltage： 4.5-5.5V
- Output： CMOS
- Freq Tolerance： ±50ppm
- Operating Temp： -40℃~+85℃
- Package： 4P 5032

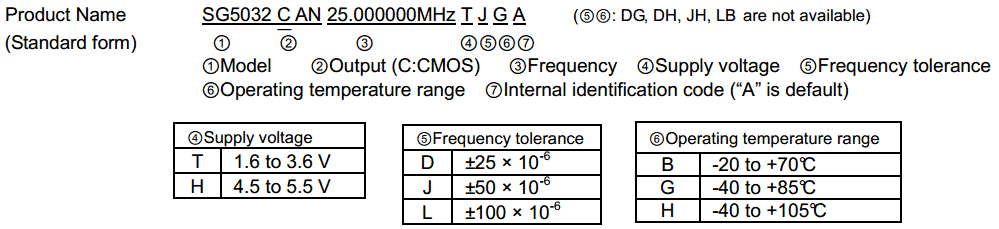

Specifications
| Item | Symbol | SG5032CCN | Conditions / Remarks |
|---|---|---|---|
| Output frequency range | f0 | 2.5MHz to 50MHz | Please contact us about available frequencies. |
| Supply voltage | VCC | H: 4.5 V to 5.5 V | |
| Storage temperature | T_stg | -40°C to +125°C | Storage as single product |
| Operating temperature | T_use | B: -20 °C to +70 °C | |
| G: -40 °C to +85 °C | |||
| Frequency tolerance | f_tol | J: ±50 × 10-6 | |
| Current consumption | ICC | 20mA Max. | No load condition Maximum frequency. |
| Disable current | I_dis | 10mA Max. | OE=GND |
| Symmetry | SYM | 40 % to 60 % | 50% VCClevel, L_CMOS ≦ 50 pF |
| Output voltage | VOH | VCC - 0.4V Min. | |
| VOL | 0.4V Max. | ||
| Output load condition(CMOS) | L_CMOS | 50 pF Max. | |
| Input voltage | VIH | 80% VCC Min. | OE terminal |
| VIL | 20% VCC Min. | ||
| Rise time/ Fall time | tr / tf | 5ns Max. | 20 % VCC ~ 80 % VCClevel, L_CMOS ≦50 pF |
| Start-up time | t_str | 5ms Max. | t=0 at 90 % VCC ,+85°C |
| Frequency aging | f_aging | ±5 × 10-6 / year Max. | +25°C, First year. |
External dimensions
(Unit: mm)
Footprint
(Unit: mm)
