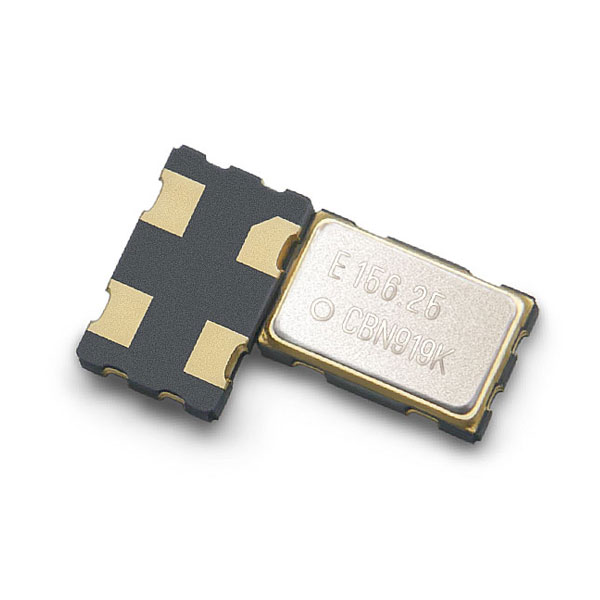

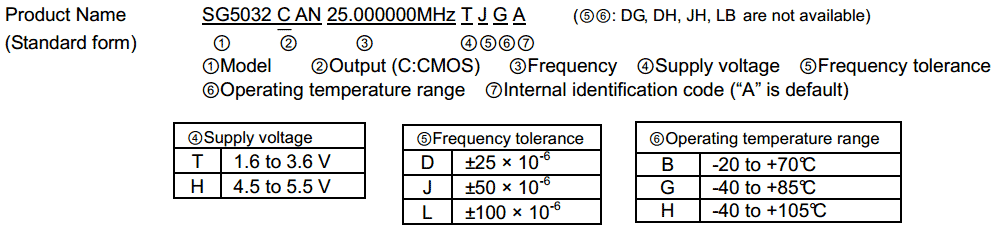

Item	Symbol	SG5032CBN	Conditions / Remarks
Output frequency range	f₀	80MHz to 170MHz	Please contact us about available frequencies.
Supply voltage	V_CC	H: 1.6 V to 3.6 V
Storage temperature	T_stg	-40°C to +125°C	Storage as single product
Operating temperature	T_use	B: -20 °C to +70 °C
Operating temperature	T_use	G: -40 °C to +85 °C
Frequency tolerance	f_tol	J: ±50 × 10^-6
Current consumption	I_CC	11mA Max.	No load condition Maximum frequency.
Disable current	I_{_dis}	-	OE=GND
Symmetry	SYM	45 % to 55 %	50% V_CClevel, L_CMOS ≦ 50 pF
Output voltage	V_OH	V_CC - 0.4V Min.
Output voltage	V_OL	0.4V Max.
Output load condition(CMOS)	L_CMOS	15 pF Max.
Input voltage	V_IH	80% V_CC Min.	OE terminal
Input voltage	V_IL	20% V_CC Min.	OE terminal
Rise time/ Fall time	tr / tf	3ns Max.	20 % V_CC ~ 80 % V_CClevel, L_CMOS ≦50 pF
Start-up time	t_str	3ms Max.	t=0 at 90 % V_CC ,+85°C
Frequency aging	f_aging	±5 × 10^-6 / year Max.	+25°C, First year.

External dimensions

(Unit: mm)

Footprint

(Unit: mm)
