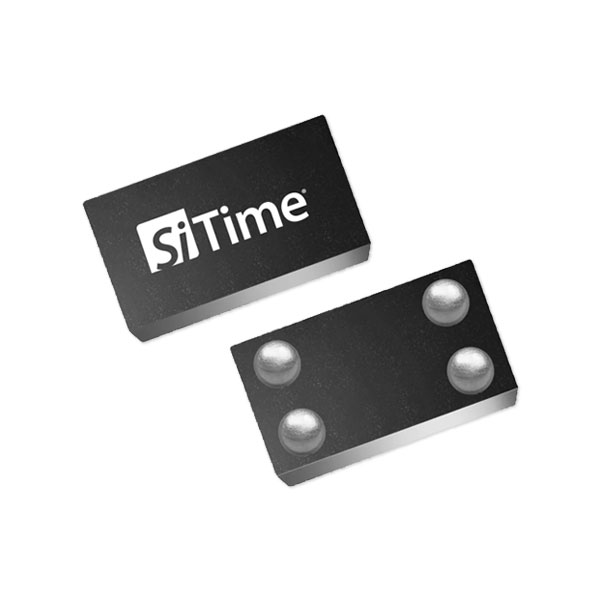

SIT1552
- Brand： SITIME
- Size/Package： 1.5 x 0.8 x 0.55 mm
- Parameter： 32.768KHz
- Supply Voltage： 1.5-3.63V
- Output： LVCMOS
- Freq Tolerance： ±5,±10,±200ppm
- Operating Temp： -40℃~+85℃
- Package： 4P 1508
- Applications： Smart Meters, Retail Electronics
- Parameters
- Brand： SITIME
- Size/Package： 1.5 x 0.8 x 0.55 mm
- Parameter： 32.768KHz
- Supply Voltage： 1.5-3.63V
- Output： LVCMOS
- Freq Tolerance： ±5,±10,±200ppm
- Operating Temp： -40℃~+85℃
- Package： 4P 1508
- Applications： Smart Meters, Retail Electronics
SiTime's TempFlat MEMS technology enables the first 32 kHz TCXO in a 1.2mm2 chip-scale package, the world's smallest footprint. Typical core supply current is only 1 μA. And unlike standard oscillators, the SiT1552 features NanoDrive™, a factory-programmable output that reduces voltage swing to minimize power. The SiT1552 is factory calibrated over multiple temperature points to guarantee extremely tight frequency stability from ±5 ppm to ±20 ppm (initial and over temperature).
Specifications
| Frequency | 32.768 kHz |
| Frequency Stability (ppm) | ±5, ±10, ±20 |
| Operating Temperature Range (°C) | -0 to +70, -40 to +85 |
| Package Type (mm²) | 1.5x0.8 |
| Oscillator Type | 32kHz TCXO |
| NanoDrive™ | 300mV to 700mV, full swing LVCMOS |
| Voltage Supply (V) | 1.5 to 3.63 |
| Features | Smallest size |
Features
±10 ppm all-inclusive frequency stability
- Improved local timekeeping and improved system power with less dependency on network timekeeping updates with mobile and wearable devices
Smallest footprint in chip-scale (CSP)
- 1.5 x 0.8 mm: Saves board space
NanoPower: 990 nA (typ.)
- Maximizes battery life
NanoDrive™ reduced swing oscillator output
- Programmable output swing minimizes power
Internal VDD supply filtering
- Eliminates external VDD bypass capacitor to maintain ultra-small footprint
