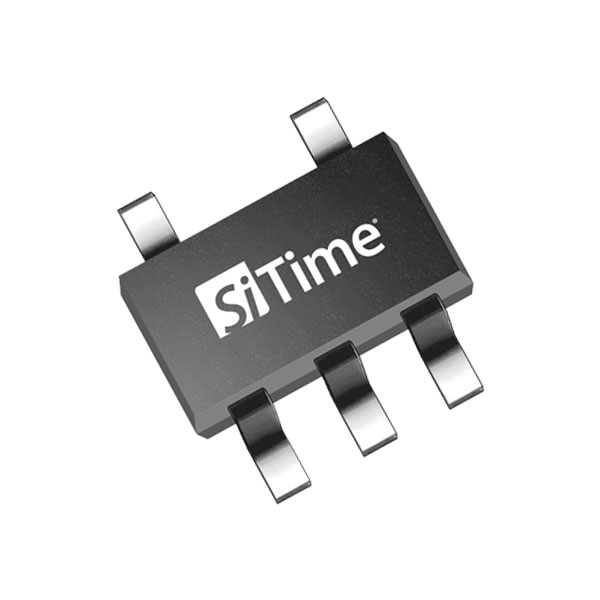

SIT2025
- Brand： SITIME
- Size/Package： 2.9 x 2.8 x 1.27 mm
- Parameter： 115-137MHz
- Supply Voltage： 1.8V,2.5-3.3V
- Output： LVCMOS,LVTTL
- Freq Tolerance： ±20,±25,±50ppm
- Operating Temp： -55℃~+125℃
- Package： SOT23-5
- Qualification： AEC-Q100
- Applications： Engine & Transmission ECUs, Infotainment
- Parameters
- Brand： SITIME
- Size/Package： 2.9 x 2.8 x 1.27 mm
- Parameter： 115-137MHz
- Supply Voltage： 1.8V,2.5-3.3V
- Output： LVCMOS,LVTTL
- Freq Tolerance： ±20,±25,±50ppm
- Operating Temp： -55℃~+125℃
- Package： SOT23-5
- Qualification： AEC-Q100
- Applications： Engine & Transmission ECUs, Infotainment
The SiT2025B is the most reliable and the highest quality AEC-Q100 compliant SOT23 oscillator for automotive and extreme temperature applications. This device delivers the perfect combination of high-frequency range (up to 137 MHz), excellent stability (±20 ppm), and extreme temperature range (-55 to 125 °C). It also features the industry's best 0.1 ppb/g vibration sensitivity, 10,000 g shock and 70 g vibration resistance.
The small SOT23-5 package offers the best board-level solder joint reliability and easy, low-cost, optical-only, board-level inspection of solder joints.
Specifications
Frequency | 115 to 137 MHz |
Frequency Stability (ppm) | ±20, ±25, ±50 |
Operating Temperature Range (°C) | -40 to 85 (Gr. 3), -40 to 105 (Gr. 2), -40 to 125 (Gr. 1), -55 to 125 (Ext. Cold Gr. 1) |
Package Type (mm²) | SOT23 (2.9x2.8) |
Oscillator Type | XO-SE |
Phase Jitter (rms) | 1.3 ps |
FlexEdgeTM Rise/Fall Time | Yes |
Voltage Supply (V) | 1.8, 2.5 to 3.3 |
Features | Field programmable, High temperature 125°C, AEC-Q100, SOT23-5 |
Features
Unique combination of
- Up to 137 MHz
- ±20 ppm
- -55 to 125 °C
- Best-in-class stability over extreme temperature range ideal for automotive and other high-rel applications
0.1 ppb/g low g-sensitivity
- No degradation of performance in harsh environments
70 g vibration and 10,000 g shock
- Indestructible
Configurable rise/fall time
- Optimize EMI to reduce interference to any subsystems
SOT23-5 package
- Best board-level solder joint reliability
- Easy, low-cost, optical-only, board-level inspection of solder joints
