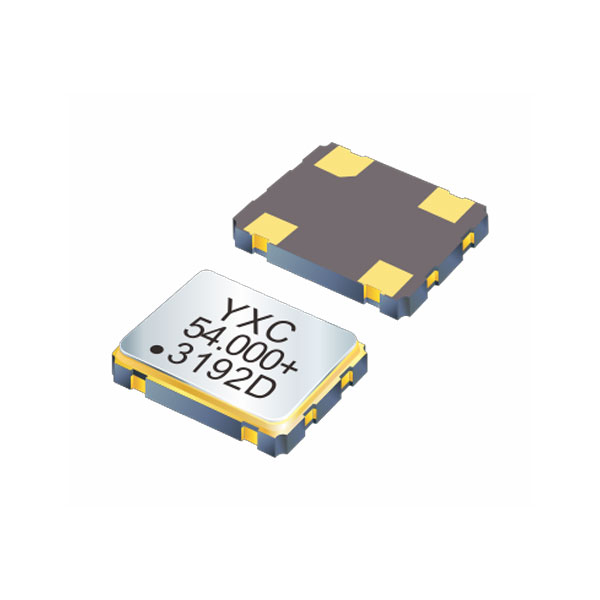

YSO140TC
- Brand： YXC
- Size/Package： 4P SMD Customized
- Parameter： 1-54MHz
- Supply Voltage： 1.8-3.3V
- Output： CMOS
- Freq Tolerance： ±50,100ppm
- Operating Temp： -40~+125℃
- Qualification： AEC-Q200
- Applications： Automotive Electronics
- Parameters
- Brand： YXC
- Size/Package： 4P SMD Customized
- Parameter： 1-54MHz
- Supply Voltage： 1.8-3.3V
- Output： CMOS
- Freq Tolerance： ±50,100ppm
- Operating Temp： -40~+125℃
- Qualification： AEC-Q200
- Applications： Automotive Electronics
Specifications
| Item / Type | YSO140TC |
| Standard Frequency | 1 to 54 MHz |
| Dimensions | 1.6 x 1.2 x 0.60 mm 2.0 x 1.6 x 0.85 mm 2.5 x 2.0 x 0.80 mm 3.2 x 2.5 x 0.90 mm 5.0 x 3.2 x 1.20 mm 7.0 x 5.0 x 1.40 mm |
| Supply Voltage | 1.8V to 3.3V |
| Output Type | CMOS |
| Vibration Mode | AT Fundamental |
| Frequency Tolerance (at 25 ℃) | ±50 ppm, ± 100 ppm, or specify |
| Output Load | 15pF |
| Operating Temperature | -40~+85 ℃, - 40 ~ + 125℃, or specify |
| Storage Temperature | - 55 ~ + 125℃ |
| Voltage Vol ( Max. ) / Vol ( Min. ) | 90%Vdd min./10%Vdd max |
| Duty Cycle | 45~55% |
| Rise(Tr) Time/Fall(Tf) Time | 5ns Max. |
| Start-up Time | 3msMax. |
| Frequency Aging ( at 25 ℃ ) | ± 3 ppm / year Max. |
