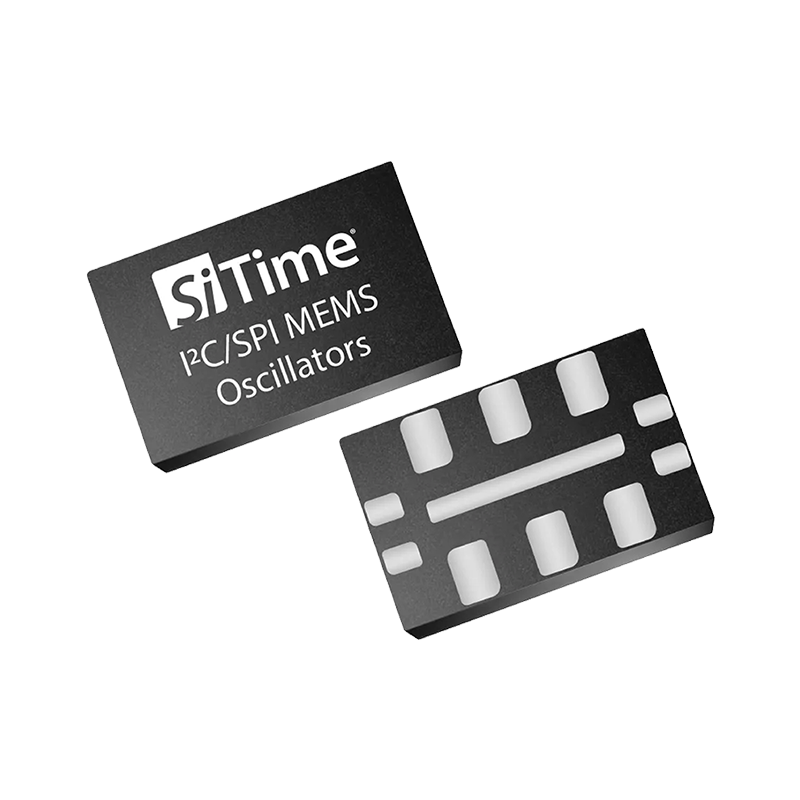

SIT3521
Ultra-low jitter, dual-chip temperature compensation, strong anti-interference and wide frequency programmability.
- Brand： SITIME
- Size/Package： 5.0 x 3.2 mm
- Parameter： 1-340MHZ
- Supply Voltage： 2.5-3.3V
- Output： LVPECL,LVDS,HCSL
- Freq Tolerance： ±10,±20,±25,±50ppm
- Operating Temp： -40℃~+105℃
- Package： 10-pin
- Applications： Processor over-clocking, Low jitter clock generation
- Parameters
- Brand： SITIME
- Size/Package： 5.0 x 3.2 mm
- Parameter： 1-340MHZ
- Supply Voltage： 2.5-3.3V
- Output： LVPECL,LVDS,HCSL
- Freq Tolerance： ±10,±20,±25,±50ppm
- Operating Temp： -40℃~+105℃
- Package： 10-pin
- Applications： Processor over-clocking, Low jitter clock generation
SIT3521 | Ruggedized DCXO Oscillator
Product Overview
The SiT3521 is a ruggedized 1–340 MHz MEMS programmable oscillator with ultra-low jitter, I²C/SPI programmability and dual-chip temperature compensation. It delivers stable, anti-interference clocking for Ethernet, servers, storage and data-center equipment, with LVPECL/LVDS/HCSL outputs in a 10-pin 5.0×3.2 mm package over -40~+105°C.
Key Advantages
- Ultra-low jitter, dual-chip temperature compensation, strong anti-interference and wide frequency programmability.
- Frequency range: 1–340 MHz (I²C/SPI programmable).
- Compact 10-pin package (5.0 × 3.2 mm) with LVPECL / LVDS / HCSL output.
- 2.5–3.3 V supply and -40~+105°C operating range; frequency stability ±10/±20/±25/±50 ppm.
- YQM ELECTRONICS supplies SIT3521 with fast samples, competitive pricing and FAE support. YQM is an authorized SiTime distributor.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Ruggedized DCXO Oscillator |
| Brand | SiTime |
| Frequency | 1–340 MHz |
| Supply Voltage | 2.5–3.3 V |
| Output | LVPECL / LVDS / HCSL |
| Frequency Stability | ±10/±20/±25/±50 ppm |
| Package | 10-pin |
| Size | 5.0 × 3.2 mm |
| Operating Temperature | -40~+105°C |
| Programmability | I²C / SPI programmable |
| Applications | Processor over-clocking, Low jitter clock generation |
Applications
- Processor over-clocking
- Low jitter clock generation
FAQ
Q: What frequency range does SIT3521 support?
A: 1–340 MHz.
Q: What package and supply voltage does SIT3521 use?
A: 10-pin (5.0 × 3.2 mm), 2.5–3.3 V.
Q: What is the frequency stability and operating temperature?
A: ±10/±20/±25/±50 ppm / -40~+105°C.
Q: Where can I get SIT3521 samples?
A: YQM ELECTRONICS supplies SIT3521 with fast samples, competitive pricing and FAE support. YQM is an authorized SiTime distributor.
Contact YQM ELECTRONICS for fast samples, competitive pricing and FAE support.
