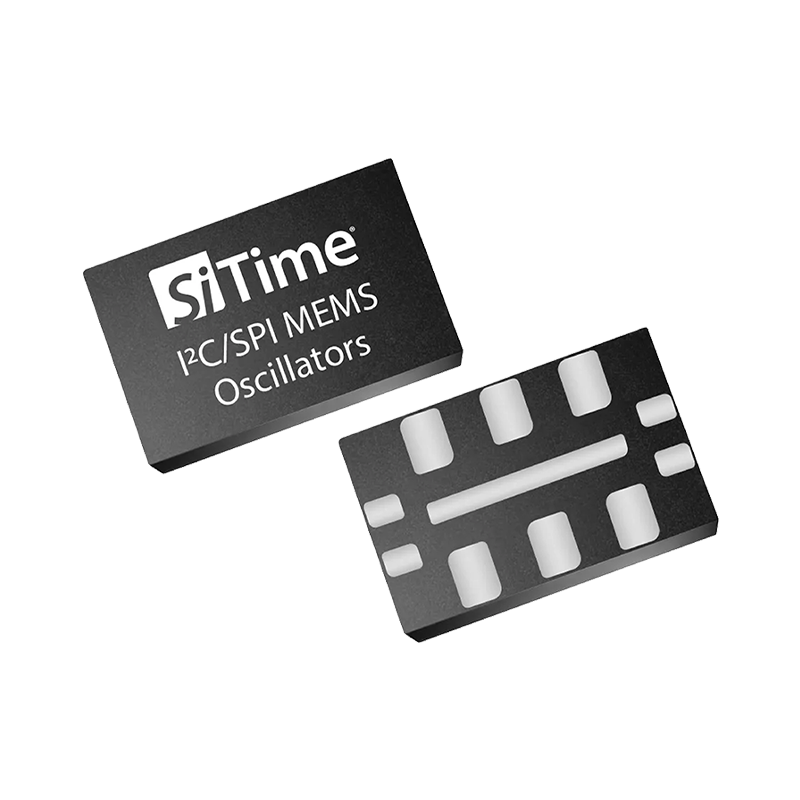

SIT3522

Product Overview

The SiT3522 extends the ruggedized DCXO family to 340–725 MHz. This high-frequency differential MEMS oscillator combines ultra-low jitter, I²C/SPI in-system programmability and dual-chip temperature compensation, delivering reliable clocking for 100G/400G Ethernet, servers, storage and data centers in a 10-pin 5.0×3.2 mm package over -40~+105°C.

Key Advantages

• High-frequency differential in-system programmable, ultra-low jitter, dual-chip temperature compensation and strong anti-interference.
• Frequency range: 340–725 MHz (I²C/SPI programmable).
• Compact 10-pin package (5.0 × 3.2 mm) with LVPECL / LVDS / HCSL output.
• 2.5–3.3 V supply and -40~+105°C operating range; frequency stability ±10/±20/±25/±50 ppm.
• YQM ELECTRONICS supplies SIT3522 with fast samples, competitive pricing and FAE support. YQM is an authorized SiTime distributor.

Technical Specifications

Applications

• Broadcasting
• Server, storage, datacenter

FAQ

Q: What frequency range does SIT3522 support?

A: 340–725 MHz.

Q: What package and supply voltage does SIT3522 use?

A: 10-pin (5.0 × 3.2 mm), 2.5–3.3 V.

Q: What is the frequency stability and operating temperature?

A: ±10/±20/±25/±50 ppm / -40~+105°C.

Q: Where can I get SIT3522 samples?

A: YQM ELECTRONICS supplies SIT3522 with fast samples, competitive pricing and FAE support. YQM is an authorized SiTime distributor.
