SIT5187
- Brand： SITIME
- Size/Package： 5.0 x 3.2 x 0.95 mm
- Parameter： 60-220MHz
- Supply Voltage： 2.5, 2.8, 3.0, 3.3V
- Output： LVCMOS
- Freq Tolerance： ±0.5, ±1, ±2.5ppm
- Operating Temp： -40℃~+105℃
- Package： 10P 5032
- Qualification： AEC-Q100
- Applications： Precision GNSS, GPS / GNSS Modules
- Parameters
- Brand： SITIME
- Size/Package： 5.0 x 3.2 x 0.95 mm
- Parameter： 60-220MHz
- Supply Voltage： 2.5, 2.8, 3.0, 3.3V
- Output： LVCMOS
- Freq Tolerance： ±0.5, ±1, ±2.5ppm
- Operating Temp： -40℃~+105℃
- Package： 10P 5032
- Qualification： AEC-Q100
- Applications： Precision GNSS, GPS / GNSS Modules

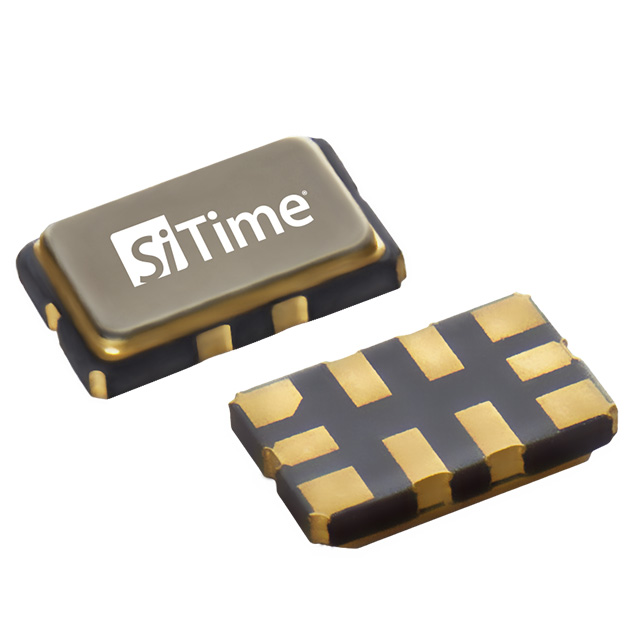

The SiT5187 AEC-Q100 automotive-grade Super-TCXO is a highly flexible, tight-stability oscillator capable of supporting up to 220 MHz. Based on the Elite Platform with SiTime’s unique DualMEMS™ and TurboCompensation™ temperature sensing technology, this device delivers excellent dynamic performance in the presence of common environmental hazards, such as airflow, temperature perturbation, vibration, shock, power supply noise and electromagnetic interference (EMI). The SiT5187 is engineered for high-reliability systems in audomotive.
The SiT5187 can be factory-programmed to any combination of frequency, stability, voltage and pull range. This programmability enables designers to customize MEMS TCXO configuration for best system performance while eliminating the long lead time and customization costs associated with quartz devices.
Specifications
Frequency | 60 to 220 MHz |
Frequency Stability (ppm) | ±0.5, ±1, ±2.5 |
Operating Temperature Range (°C) | -20 to 70 (Gr 4), -40 to 85 (Gr 3), -40 to 105 (Gr 2) |
Package Type (mm²) | 5.0 x 3.2 10-pin |
Oscillator Type | TCXO-SE |
Phase Jitter (rms) | 0.31 ps |
Pull Range (ppm) | ±6.25, ±10, ±12.5, ±25, ±50, ±80, ±100, ±125, ±150, ±200, ±400, ±600, ±800, ±1600, ±3200 |
Voltage Supply (V) | 2.5, 2.8, 3, 3.3 |
Features | Precision TCXO |
Features
Tight stability ±0.5 ppm over AEC-Q100 Grade 2 temperature
- ±0.5 ppm over temperature -40 °C to 105 °C
Exceptional dynamic stability under airflow, fast temp. ramp
- 3e-11 ADEV at 10 second average time
- ±15 ppb/°C frequency slope (ΔF/ΔT), 10°C/min ramp
- Enables fastest satellite lock under any operating conditions
20x better phase noise under vibration
- Minimizes loss of satellite lock in high-vibration environments
No activity dips or microjumps
- Eliminates the need for costly inspection or burn-in test
0.2 ps/mV power supply noise rejection (PSNR)
- Reduces BOM by eliminating a dedicated LDO for the TCXO
70 g vibration and 30,000 g shock
- Best robustness and reliability in harsh conditions
LVCMOS or Clipped sinewave output
- Optimize for best balance between EMI and jitter
Rich programmable features
- Any frequency between 60 to 189 MHz and 200 to 220 MHz
- ±0.5 ppm, ±1 ppm, ±2.5 ppm
- 2.25 to 3.63 V
- Large pull range from ±6.25 to ±3200 ppm:
- Customize TCXO specifications for optimal system performance
Digital frequency tuning through I2C
- Eliminate frequency shift caused by board noise
Superior reliability
- 1 billion hours MTBF
- Lifetime warranty: Reduces repair costs and field failures due to clock components
