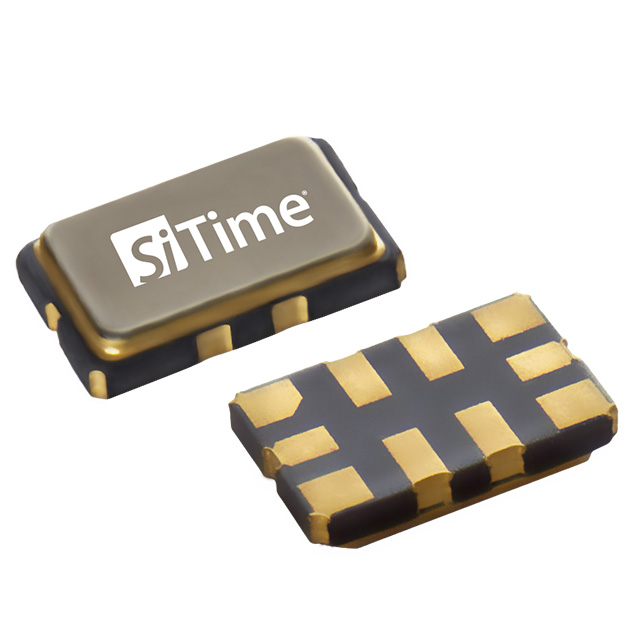

SIT5386
- Brand： SITIME
- Size/Package： 5.0 x 3.2 x 0.95 mm
- Parameter： 1-60MHz
- Supply Voltage： 2.5V,2.8V,3.0V,3.3V
- Output： LVCMOS
- Freq Tolerance： ±0.1,±0.2,±0.25ppm
- Operating Temp： -40℃~+105℃
- Package： 10P 5032
- Qualification： AEC-Q100
- Applications： Precision GNSS, GPS / GNSS Modules
- Parameters
- Brand： SITIME
- Size/Package： 5.0 x 3.2 x 0.95 mm
- Parameter： 1-60MHz
- Supply Voltage： 2.5V,2.8V,3.0V,3.3V
- Output： LVCMOS
- Freq Tolerance： ±0.1,±0.2,±0.25ppm
- Operating Temp： -40℃~+105℃
- Package： 10P 5032
- Qualification： AEC-Q100
- Applications： Precision GNSS, GPS / GNSS Modules
The SiT5386 is an AEC-Q100 automotive-grade ±100 ppb precision MEMS Super-TCXO. This device is based on the Elite Platform and is engineered for best dynamic performance. By leveraging SiTime’s unique DualMEMS™ and TurboCompensation™ temperature sensing technology, the SiT5386 delivers the most stable timing in the presence of environmental stressors – airflow, temperature perturbation, vibration, shock, and electromagnetic interference (EMI).
SiT5386 can be factory-programmed to any combination of frequency, stability, voltage, and pull range. This programmability enables designers to optimize the clock configuration while eliminating the long lead time and customization costs associated with quartz TCXOs where each frequency is custom built.
Specifications
| Frequency | 1 to 60 MHz |
| Frequency Stability (ppm) | ±0.1, ±0.2, ±0.25 |
| Operating Temperature Range (°C) | -20 to 70 (Gr 4), -40 to 85 (Gr 3), -40 to 105 (Gr 2) |
| Package Type (mm²) | 5.0 x 3.2 10-pin |
| Oscillator Type | TCXO-SE |
| Phase Jitter (rms) | 0.31 ps |
| Pull Range (ppm) | ±6.25, ±10, ±12.5, ±25, ±50, ±80, ±100, ±125, ±150, ±200, ±400, ±600, ±800, ±1600, ±3200 |
| Voltage Supply (V) | 2.5, 2.8, 3, 3.3 |
| Features | Precision TCXO |
Features
Industry's most stable automotive-grade TCXO
- ±100 ppb over AEC-Q100 Grade 2 temperature from -40 °C to 105 °C
Exceptional dynamic stability under airflow, fast temp. ramp
- 3e-11 ADEV at 10 second average time
- ±1 ppb/°C frequency slope (ΔF/ΔT), 10 °C/min ramp
- Ensures system-level quality of service for telecom and networking equipment in hostile environments
20x better phase noise under vibration
- Minimizes call and/or link drops in high-vibration environments
No activity dips or microjumps
- Eliminates any need for costly screening or burn-in tests
0.2 ps/mV power supply noise rejection (PSNR)
- Reduces BOM by eliminating a dedicated LDO for TCXO
70 g vibration and 30,000 g shock
- Best robustness and reliability in harsh conditions
LVCMOS or Clipped sinewave output
- Optimizes for best balance between EMI and jitter
Rich programmable features
- Any frequency between 1 to 60 MHz
- 2.25 to 3.63 V
- Large pull range from ±6.25 to ±3200 ppm
- Customize TCXO specifications for optimal system performance
Digital frequency tuning through I2C
- Eliminate frequency shift caused by board noise
Superior reliability
- 1 billion hours MTBF
- Lifetime Warranty: Reduces repair costs and field failures due to clock components
