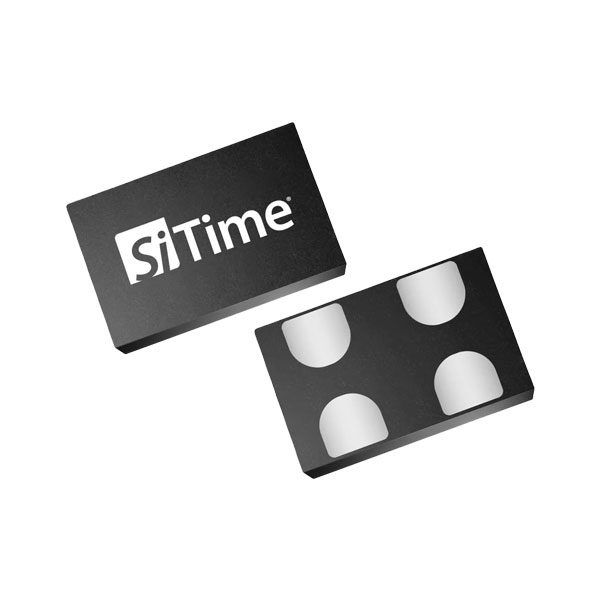

SIT8009

The SiT8009B is a low-power, high-frequency oscillator with LVCMOS/HCMOS compatible output. Its 4.9 mA typical current consumption (in 1.8 V) enables greener electronics without compromising performance. It provides the perfect combination of low power consumption, excellent stability, flexible operating voltage, small size and short lead time for portable, consumer, and industrial applications.

Specifications

Configurable feature sets

• Any frequency between 115 to 137 MHz with 6 decimal places of accuracy

• Stability from ±20 ppm to ±50 ppm

• Industrial or extended commercial temp.

• 1.8 V and 2.5 V to 3.3 V supply voltage

• Customize specification for optimal system performance

• Use same base device for many designs, reducing qualification needs


Lowest power consumption of any high-frequency oscillators

• 5.5 mA typical active current (1.8 V)

• 1 µA typical standby current (1.8 V):

• Extends battery life

• Enables greener electronics;


Small 2016 & 2520 packages for all frequencies, voltages and stabilities

• Save more board space without compromising performance and availability


FlexEdge™ configurable drive strength

• Slower rise/fall time that minimizes EMI from the oscillator

• Saves cost by driving multiple loads and eliminate additional timing components;
