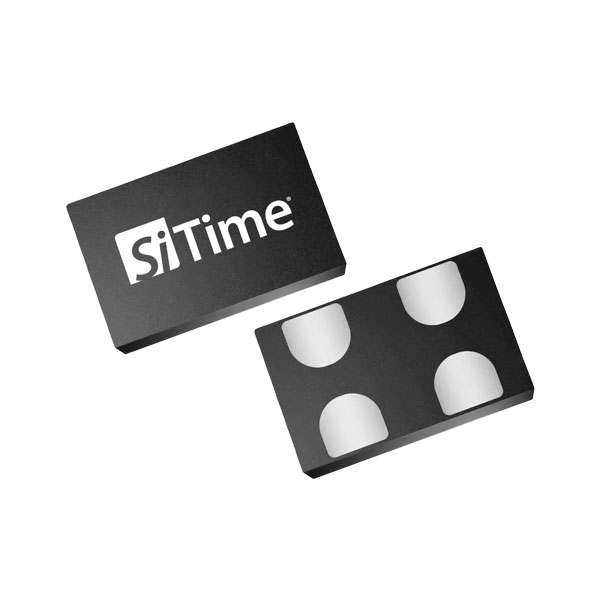

SIT8008

The SiT8008B is a programmable oscillator, featuring wide frequency range, low power consumption, small size, excellent stability and short lead times for consumer, networking, industrial and other applications. Continuous 1.8 V to 3.3 V supply voltage enables inventory consolidation and qualification of a single device configuration.

Specifications

Features

Configurable feature sets

• Any frequency between 1 and 110 MHz with 6 decimal places of accuracy

• Stability from ±20 ppm to ±50 ppm

• Industrial or extended commercial temp.

• 1.8 V, 2.5 V to 3.3 V, 1.8 V to 3.3 V supply voltage

• Customize specification for optimal system performance

• Use same base device for many designs, reducing qualification needs;


Small 2016 & 2520 packages for all frequencies, voltages and stabilities

• Save more board space without compromising performance and availability


Low power consumption

• 1.2 µA typical standby current (1.8 V)

• 3.6 mA typical active current (1.8 V)

• Extends battery life in portable applications

• Reduces power consumption for greener systems;


FlexEdge™ configurable drive strength

• Slower rise/fall time that minimizes EMI from the oscillator

• Saves cost by driving multiple loads and eliminate additional timing components;
