The TG-5006CG is a 2.5×2.0 mm TCXO for GPS, wireless communication and portable devices. It addresses temperature drift, synchronization accuracy and battery life.

YQM supplies authentic EPSON TG-5006CG parts with datasheets, samples and FAE support for production programs.

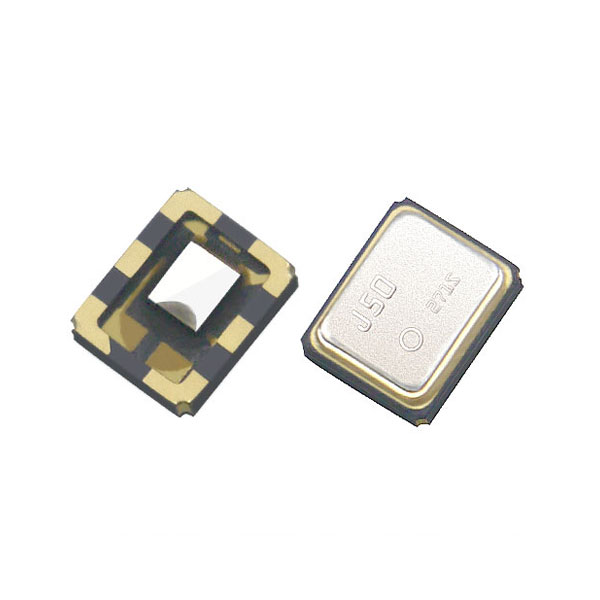

TG-5006CG EPSON — TG-5006CG product image

Application Pain Points & Solutions

Pain: Single-seal TCXOs drift when temperature and humidity change
Solution: Double-seal structure blocks moisture and pressure changes; ±0.5 ppm over -30~+85°C.
Pain: Wireless links (Bluetooth/Wi-Fi/5G RedCap) lose packets when the clock drifts
Solution: ±0.5 ppm stability reduces carrier offset and packet loss.
Pain: GPS cold start is slow and accuracy drops outdoors
Solution: High-precision clock improves cold-start search and maintains meter-level accuracy.
Pain: Portable devices need long battery life
Solution: 1.5 mA typical current, 3.3 μA standby, 1.7–3.465V supply.

Core Advantages

Double-seal structure: Blocks moisture and pressure changes for stable oscillation.
±0.5 ppm over -30~+85°C: Tight stability for GPS and wireless links.
1.5 mA typ. / 3.3 µA standby: Extends battery life in portable devices.
2.5×2.0×0.8 mm package: Saves PCB space in compact designs.

Specifications

Parameter	Symbol	Value	Conditions	Notes
VC-TCXO	TCXO
Output frequency range	f 0	13.000MHz to 52.000MHz
Output frequency range	f 0	16.367667 MHz, 16.368 MHz, 16.369 MHz, 19.2 MHz, 26 MHz, 38.4 MHz		Standard frequency
Supply voltage	V CC	1.8V ±0.1V / 2.8V ± 5 % / 3.0 V ± 5 % / 3.3 V ± 5 %		Range: 1.7V to 3.465V
Storage temperature	T_stg	-40°C to +90°C		Store as single product.
Operating temperature	T_use	-30°C to +85°C
Frequency tolerance	f_tol	±2.0 x10 -6 Max.		After reflow, +25°C
Frequency/ temperature characteristics	fo-T C	±0.5 x 10 -6 Max. / -30°C to +85°C		High stability version for GPS
Frequency/ temperature characteristics	fo-T C	±2.0 x 10 -6 Max. / -30°C to +85°C		Standard stability version
Frequency/load coefficient	fo-Load	±0.2 × 10 -6 Max.		10kΩ // 10pF ±10%
Frequency/voltage coefficient	fo-V CC	±0.2 × 10 -6 Max.		V CC ± 5%
Frequency aging	f_age	±1.0 × 10 -6 Max.		+25°C, First year, 13MHz≤ f 0 ≤40MHz
Frequency aging	f_age	±1.5 x 10 -6 Max.		+25°C, First year, 40MHz< f 0 ≤52MHz
Current consumption	I CC	1.5mA Max.		13MHz≤ f 0 ≤26MHz
Current consumption	I CC	2.0mA Max.		26MHz< f 0 ≤52MHz
Input resistance	Rin	500kΩ Min.	-	V C - GND (DC)
Frequency control range	f_cont	±8.0 × 10 -6 to ±15.0 × 10 -6	-	VC=0.9 V ±0.6 V (V cc =1.8 V) or VC=1.4 V ±1.0 V (V cc =2.8 V)
Frequency change polarity	-	Positive polarity	-
Symmetry	SYM	40% to 60%		GND level (DC cut)
Output voltage	V PP	0.8V Min.		Peak to peak
Output load condition	Load_R	10kΩ		DC cut capacitor = 0.01µF
Output load condition	Load_C	10pF		DC cut capacitor = 0.01µF

Original specification table (English).

Technical Drawings

Ordering Information

Original ordering information (English).

Package Dimensions

Package dimensions (unit: mm).

Recommended PCB Footprint

Recommended PCB footprint (unit: mm).

Please confirm the exact ordering code, frequency and package with YQM before production.
