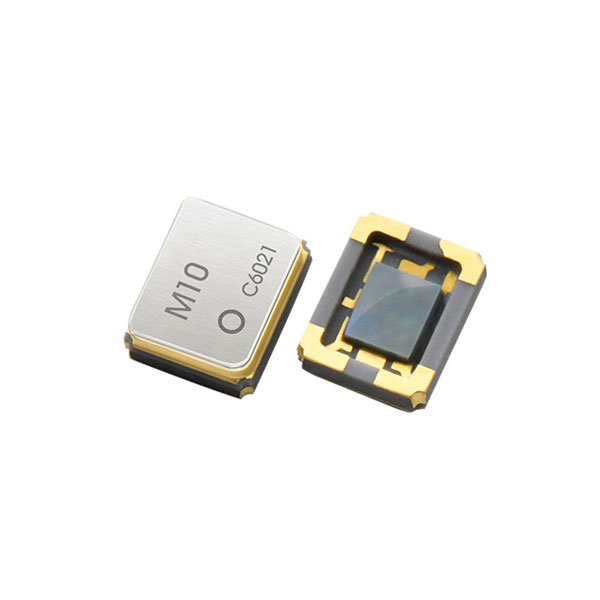

TG-5006CJ
- Brand： EPSON
- Size/Package： 2.0 x 1.6 x 0.73 mm
- Parameter： 13-52MHz
- Supply Voltage： 1.8, 2.8, 3.0, 3.3V
- Output： Sine wave
- Freq Tolerance： ±2ppm
- Operating Temp： -30℃~+85℃
- Package： 4P 2016
- Applications： GPS,Wireless communication device
- Parameters
- Brand： EPSON
- Size/Package： 2.0 x 1.6 x 0.73 mm
- Parameter： 13-52MHz
- Supply Voltage： 1.8, 2.8, 3.0, 3.3V
- Output： Sine wave
- Freq Tolerance： ±2ppm
- Operating Temp： -30℃~+85℃
- Package： 4P 2016
- Applications： GPS,Wireless communication device

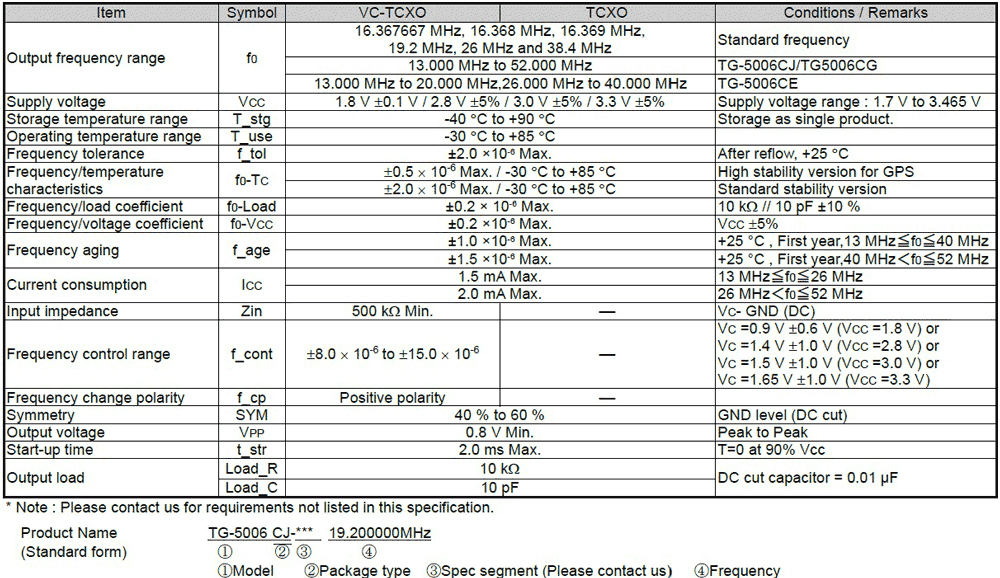

Specifications

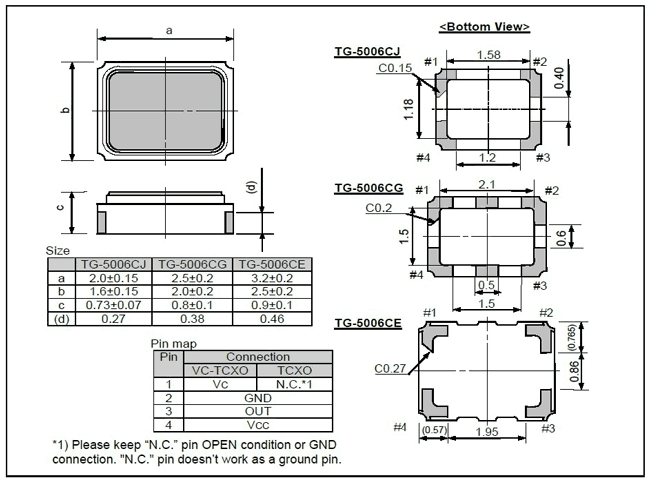

External dimensions
(Unit: mm)
Please keep "N.C." pin OPEN condition or GND connection.
"N.C." pin doesn’t work as a ground pin.

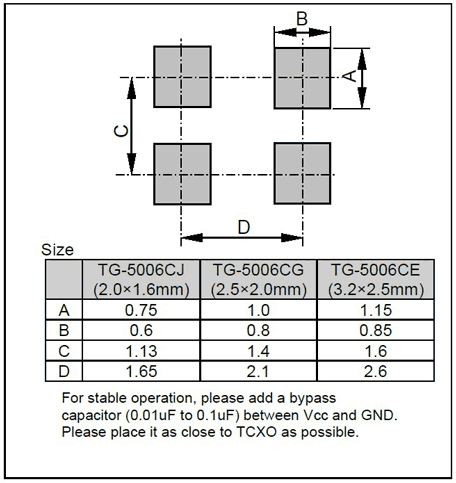

Footprint
(Unit: mm)
For stable operation, please add a bypasscapacitor (0.01uF to 0.1uF) between Vcc and GND.
Please place it as close to TCXO as possible.
