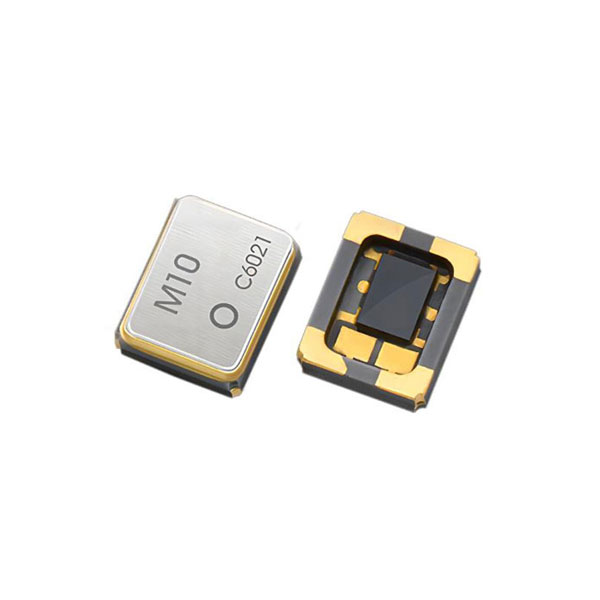

TG2016SMN
- Brand： EPSON
- Size/Package： 2.0 x 1.6 x 0.73 mm
- Parameter： 10-55MHz
- Supply Voltage： 1.8, 2.8, 3.0, 3.3V
- Output： Sine wave
- Freq Tolerance： ±0.5ppm
- Operating Temp： -40℃~+85℃
- Package： 4P 2016
- Applications： GPS,RF Wireless communication
- Parameters
- Brand： EPSON
- Size/Package： 2.0 x 1.6 x 0.73 mm
- Parameter： 10-55MHz
- Supply Voltage： 1.8, 2.8, 3.0, 3.3V
- Output： Sine wave
- Freq Tolerance： ±0.5ppm
- Operating Temp： -40℃~+85℃
- Package： 4P 2016
- Applications： GPS,RF Wireless communication

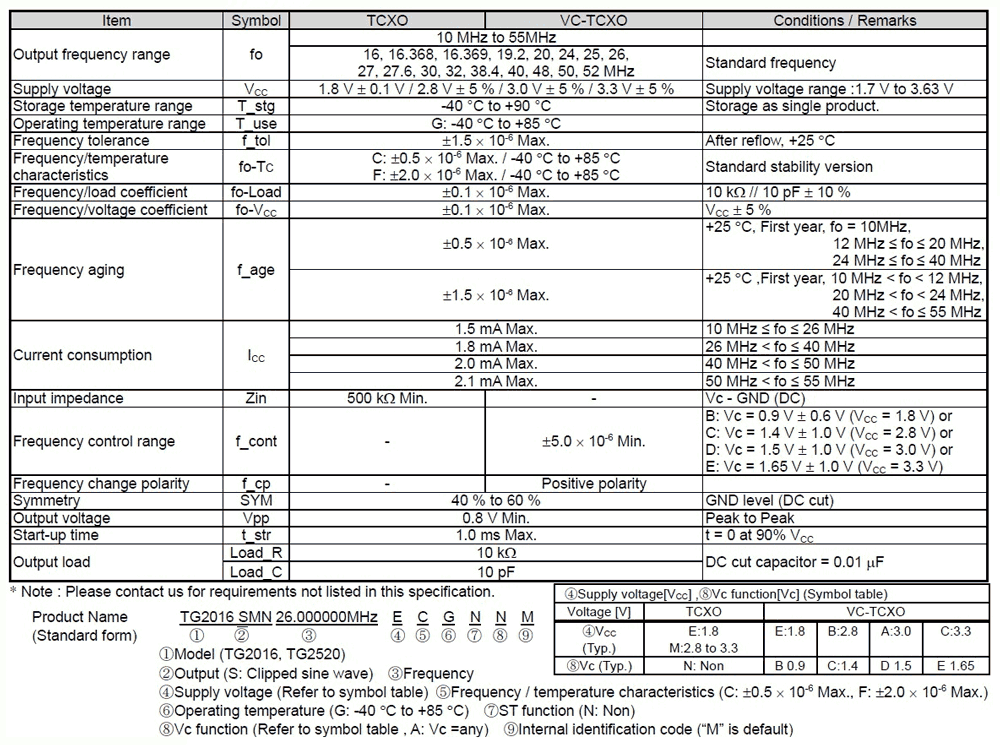

Specifications

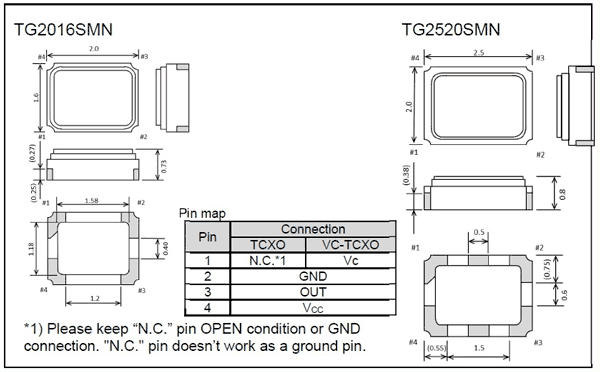

External dimensions
(unit: mm)
Please keep "N.C." pin OPEN condition or GND connection.
"N.C." pin doesn’t work as a ground pin.

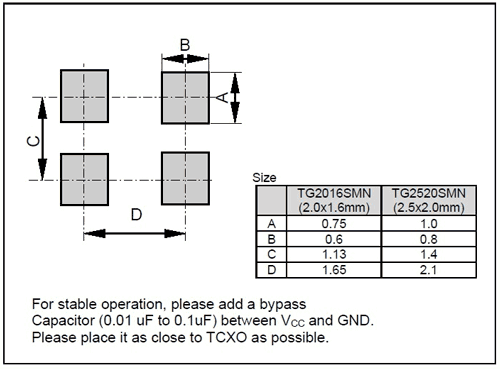

Footprint
(Unit: mm)
To maintain stable operation, provide a 0.01uF to 0.1uF by-pass capacitor at a location as near as possible to the power source terminal of the crystal product (between Vcc - GND).
