Item		Symbol	Specifications	Conditions / Remarks
Supply Voltage		V_DDM	2.7 to 3.6 V
Supply Voltage for interface		V_DDI	1.65 V to 3.60 V
Temperature range	Storage Temperature	T_STG	-40°C to +85°C
Temperature range	Operating Temperature	T_OPR	-20°C to +80°C
Scale Factor		So	280 LSB/(°/s) ±5 %	16bit, Ta=+25 °C
Bias		ZRL	±1 °/s (0 LSB Typ.)	Ta=+25 °C
Bias over temperature		ZRL_t	±5 °/s	Variation from Ta = +25 °C
Rate range		I	±100°/s
Non linearity		NI	±0.5 %FS	Ta=+25°C
Cross axes		CS	±5 %	Ta=+25°C
Current consumption		Iop1	0.9 mA Typ.	Not communicating
Stand-by current		Iop2	160 µA Typ.
Sleep current		Iop3	3 µA Typ.
Noise		Nd	0.003(°/s)/√Hz	at 10 Hz

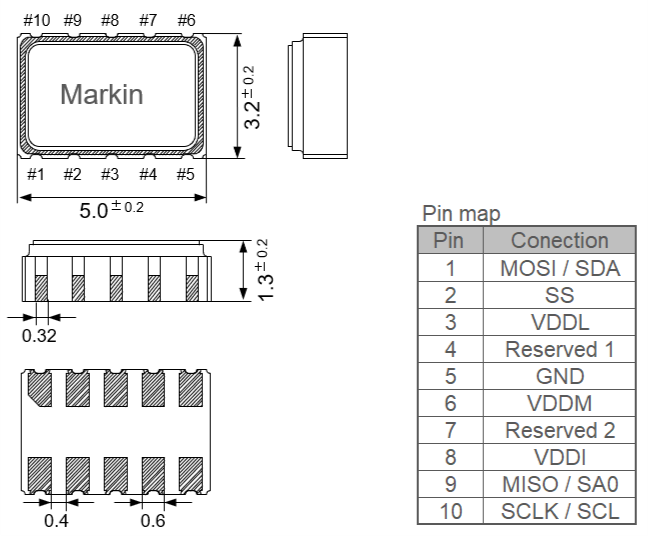

External Dimensions

Connect "Reserved1" pin to GND.
Do not connect "Reserved2" pin externally.

(Unit: mm)

Footprint

(Unit: mm)
