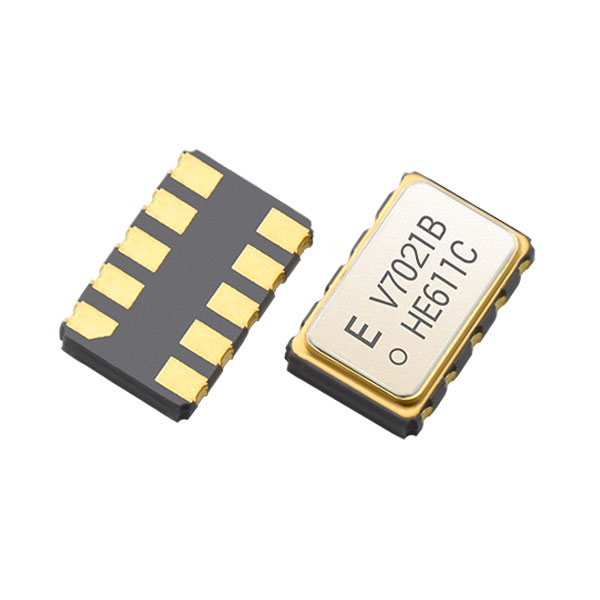

XV7021BB

The Epson XV7021BB is a flagship single-axis quartz crystal gyroscope sensor engineered for applications demanding the highest level of angular rate measurement precision. Unlike conventional silicon MEMS gyroscopes, the XV7021BB leverages Epson's proprietary Double-T quartz crystal structure, delivering exceptional temperature stability, ultra-low noise, and minimal bias drift. With a digital SPI / I²C interface, built-in temperature sensor, and user-selectable digital filters (LPF/HPF), this sensor is ideally suited for high-end industrial motion control, precision platform stabilization, autonomous navigation, and vibration analysis systems where measurement integrity cannot be compromised.

Key Design Challenges Solved

Pain Point 1 — Temperature Swings Cause Severe Measurement Drift

In harsh field environments, ambient temperature swings of 40°C or more are common. Conventional MEMS gyroscopes exhibit severe bias drift under such thermal stress, forcing engineers to implement complex external compensation circuits, frequent on-site recalibration, or oversized thermal management hardware — all of which increase system cost, size, and power consumption while eroding long-term reliability.

✅ Solution: The quartz crystal Double-T sensing element offers inherently superior thermal stability compared to silicon-based MEMS. The XV7021BB achieves an industry-leading bias variation of only ±1.0 °/s maximum across the full -20 to +80°C operating temperature range, with a typical bias temperature coefficient of just 0.0016 (°/s)/°C. The integrated precision temperature sensor enables straightforward software-level calibration for even finer compensation, eliminating the need for external temperature-control hardware. The result is dependable, repeatable output from cold start to full thermal saturation.

Pain Point 2 — Motion Recognition Latency Degrades Tracking Performance

In VR/AR headsets, stabilized gimbals, and real-time robotic control loops, every millisecond of sensor latency directly translates into perceptible tracking lag, motion sickness, or control instability. Engineers often resort to aggressive digital filtering to combat sensor noise, but heavy filtering introduces unacceptable phase delay — a lose-lose trade-off that undermines the core user experience.

✅ Solution: With an exceptionally low noise density of 0.0015 (°/s)/√Hz typical at 10 Hz, the XV7021BB outputs a remarkably clean raw signal. This ultra-low noise floor means drastically less digital filtering is required to meet a given noise budget, directly reducing group delay and end-to-end system latency. Combined with an Angle Random Walk of 0.065 °/√h and bias instability of 0.065 °/h, the sensor delivers cockpit-grade angular data fidelity that keeps motion tracking smooth, responsive, and artifact-free — even during subtle, slow movements.

Pain Point 3 — High-Speed Motion Capture Conflicts with Battery Life Requirements

Applications such as drone acrobatics, industrial robotic joints, and high-speed camera gimbals require both a wide angular rate measurement range to track rapid slews and extreme power efficiency to sustain long-duration field operations. Most compact gyroscopes force a compromise: a wide range sensor that drains the battery, or an efficient sensor that saturates at moderate rotation speeds — neither of which satisfies the full mission profile.

✅ Solution: The sensor offers a generous ±400 °/s full-scale rate range that captures rapid, wide-swing rotations without clipping. Despite this dynamic headroom, its intelligent power architecture draws only 0.9 mA in active mode, dropping to 160 µA in standby and an ultra-low 3 µA in sleep mode. This three-tier power management enables duty-cycled operation schemes where the sensor wakes, samples, and sleeps in microseconds, achieving dramatic battery life extension without sacrificing motion-tracking readiness. The 2.7–3.6V supply range further simplifies battery selection and regulation design.

Pain Point 4 — Vibration-Induced Drift and Unit-to-Unit Inconsistency Undermine Precision

In industrial motor drives, heavy machinery monitoring, and vehicle-mounted inertial systems, three problems converge: thermal stress causes output drift, strong mechanical vibrations couple into the sensor as false rotation signals, and mass-produced silicon MEMS gyroscopes exhibit unit-to-unit variability that undermines precision assembly processes. Together, these factors demand costly multi-sensor fusion, vibration isolation mounts, and per-unit calibration — inflating both BOM cost and production cycle time.

✅ Solution: The quartz Double-T crystal resonator design is fundamentally resistant to vibration-induced errors, unlike silicon MEMS comb-drive structures that are inherently susceptible to mechanical coupling from adjacent axes and external shock. The XV7021BB achieves a typical non-linearity of ±0.5% FS, ensuring linear, predictable output across the entire measurement span. Combined with 0.065 °/h bias instability and the sensor's exceptional temperature repeatability, the XV7021BB dramatically reduces the need for multi-sensor IMU arrays and vibration-damping mounts. Epson's crystal fabrication process — honed over decades of high-volume quartz watch and precision oscillator manufacturing — guarantees tight unit-to-unit consistency, reducing production-line calibration time and improving end-product yield.

Specifications & Mechanical Drawings

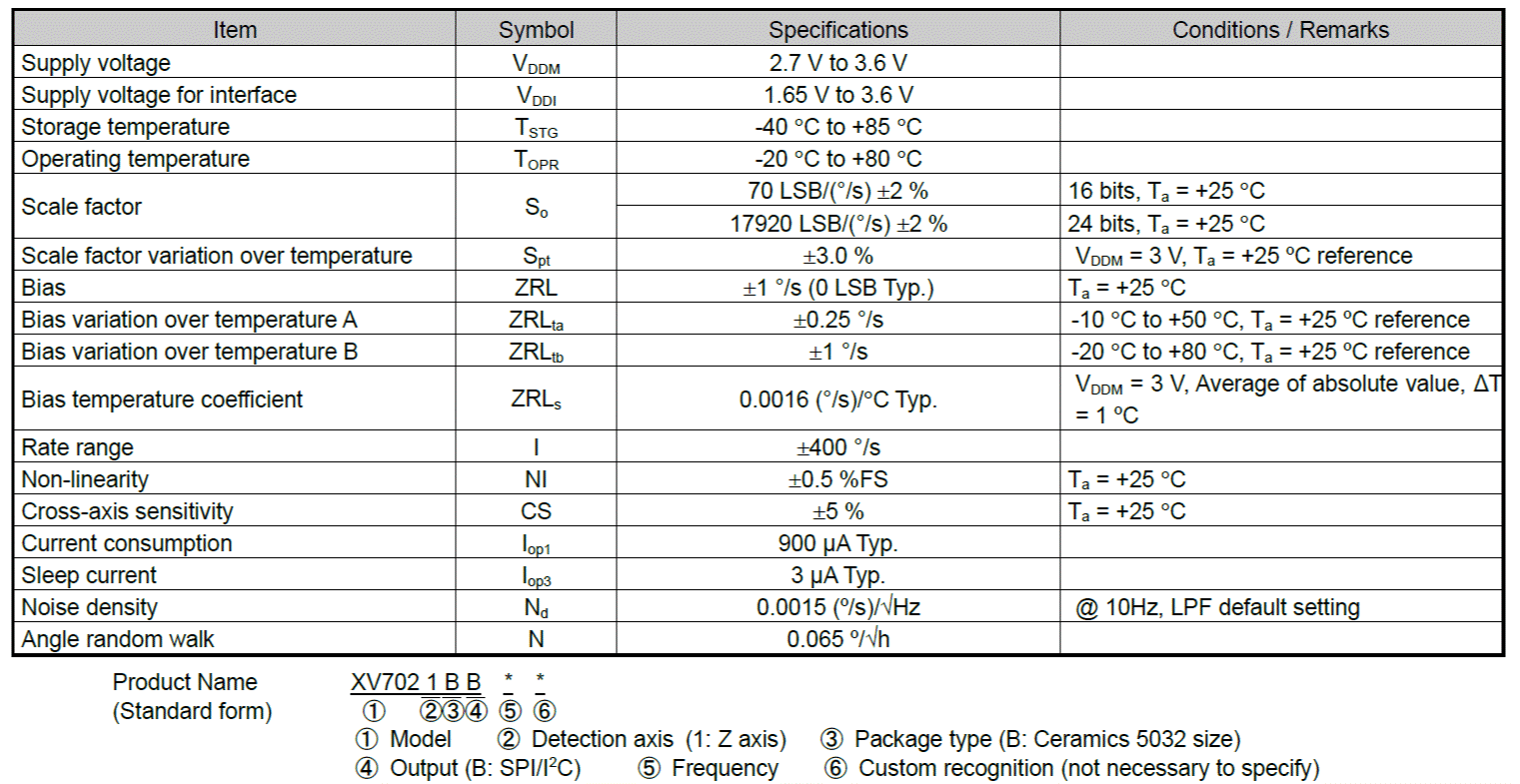

Specifications (characteristics)

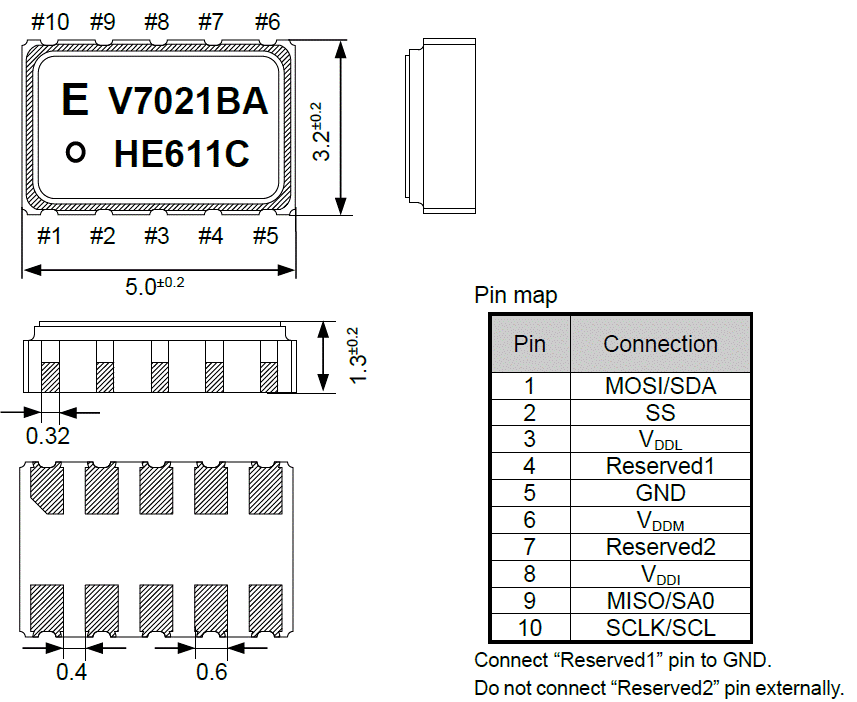

External Dimensions

Connect 'Reserved' pin to GND.

Do not connect 'DRY' pin externally.

(Unit: mm)

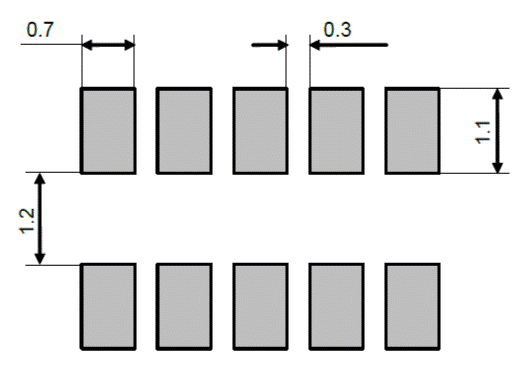

Footprint (Recommended)

(Unit: mm)

Key Advantages of Quartz Crystal Gyroscope Technology

Target Applications

XV-Series Model Comparison

Epson’s XV7000 series offers three single-axis gyroscope variants to serve different performance and cost points. Use the comparison below to select the optimal model for your design requirements.

* Specifications shown are typical values. Refer to the official Epson datasheet for exact minimum/maximum limits and test conditions. The XV7021BB is recommended when bias stability and low noise are the primary design priorities.
