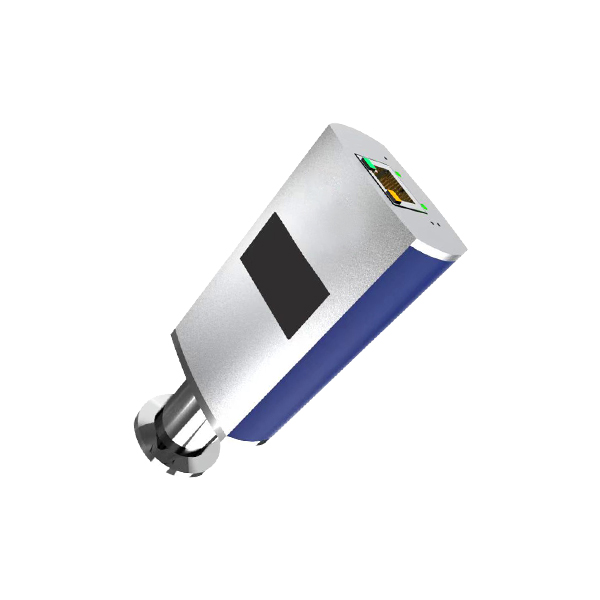

YC

The YC Series Combination Gauge integrates a piezoresistive sensor core and a Pirani sensor core internally, capable of measuring pressures up to 1.5 atmospheres. Accurate pressure measurement independent of gas type is achieved above 14 mbar. The sensor features a display screen for real-time operational status indication, optional setpoint functionality, and an atmospheric pressure sensor. lt is also available in digital communication versions such as EtherCAT, DeviceNet, RS232, and RS485, making it suitable for a wide range of application scenarios.

Performance Parameters(Reading Accuracy/Resolution):

0.05-0.1Pa    ±50%R.D.

0.1-100Pa    ±15%R.D.

100-1200Pa    ±10%R.D.

1200-150000Pa    ±2.5%R.D.

Pin Pin Replace:

PCG550 (INFICON)

Application:

1. Foreline vacuum pressure measurement.

2. Vacuum measurement and control in medium and low vacuum ranges.

3. High-pressure gauge system process control.

4. Gas backfilling measurement and control.

5. Mass spectrometer applications.
