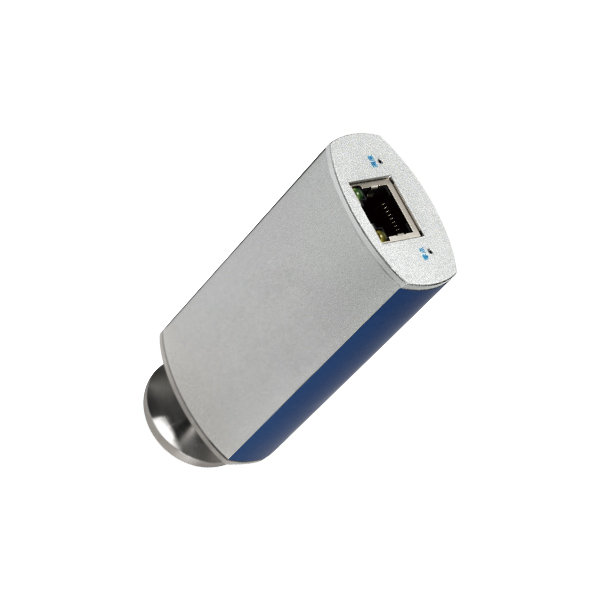

YMx

The YMx series Pirani pressure sensors utilize a Wheatstone bridge configuration and the variation in thermal conductivity of gases at different pressures to detect pressure levels. The MEMS-based Pirani sensing element employed offers a lower measurable pressure range compared with conventional Pirani gauges.The sensors can be optionally equipped with a display screen and SP setpoints, and maintain high reliability even under operating pressure conditions,enabling accurate measurements from medium vacuum to atmospheric pressure. Rugged and compact in design, they feature low power consumption,excellent stability, and convenient maintenance.

Performance Parameters(Reading Accuracy/Resolution):

0.05-0.1Pa    ±25%R.D.

0.1-10000Pa    ±15%R.D.

10000-100000Pa    ±30%R.D.

Pin Pin Replace:

PSG500 (INFICON)

Application:

1. Measurement and control of medium to low vacuum

2. Physical Vapor Deposition (PVD) equipment

3. Freeze drying

4. Vacuum packaging in the food industry 5.Analytical equipment / Mass spectrometer applications

6. Pressure monitoring in vacuum pump systems
